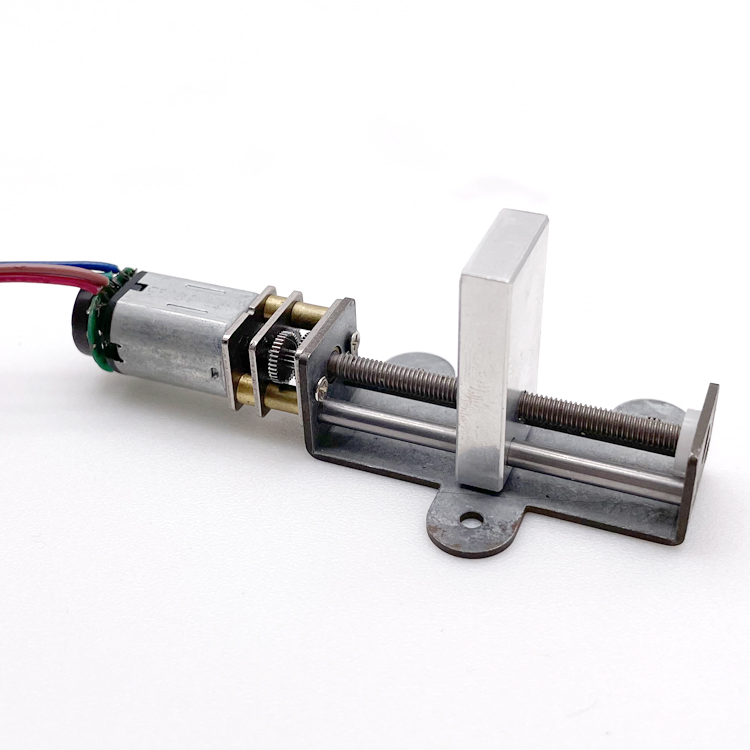

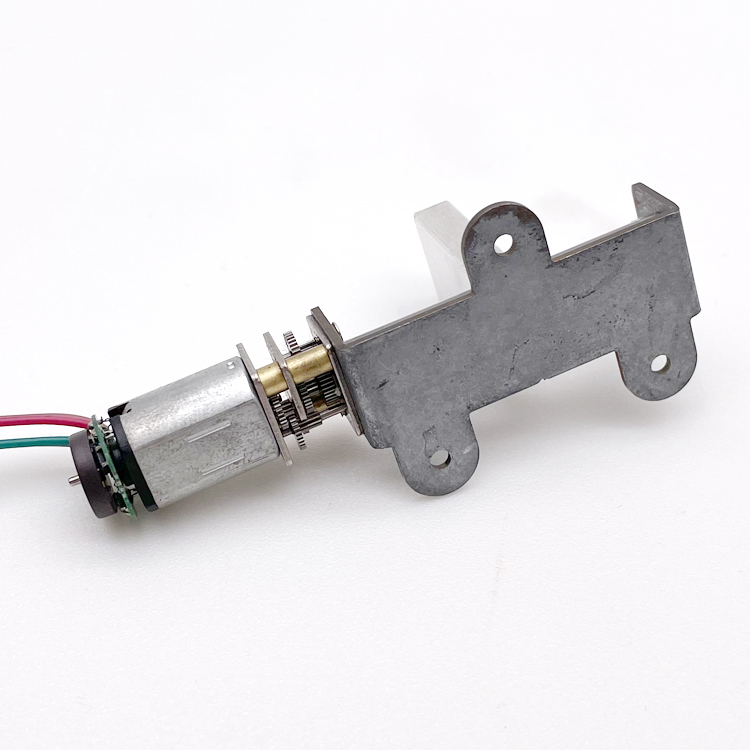

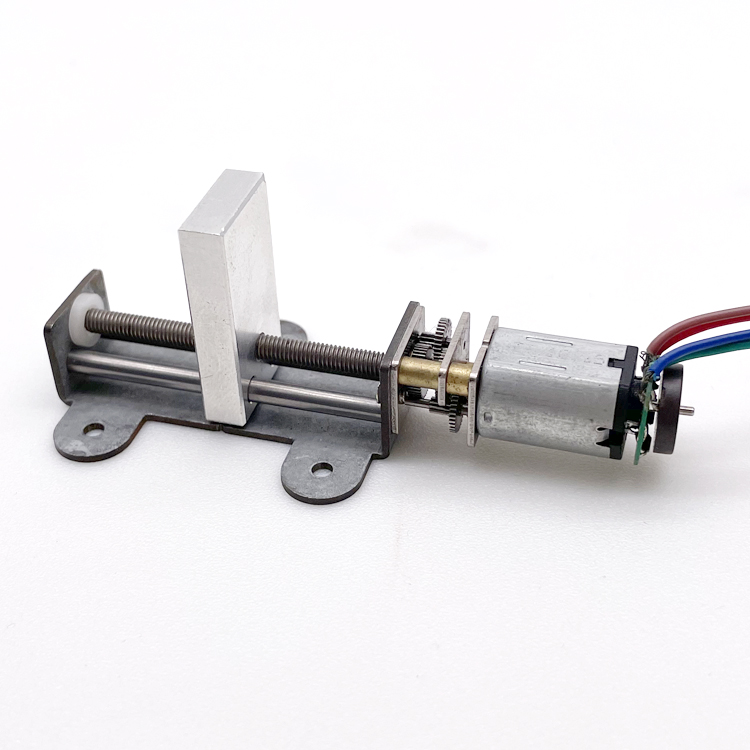

TT Motor 12v Electric Motors GM12-N20VA 1000 Ratio Spur Gear Motor for Sale
Product Description

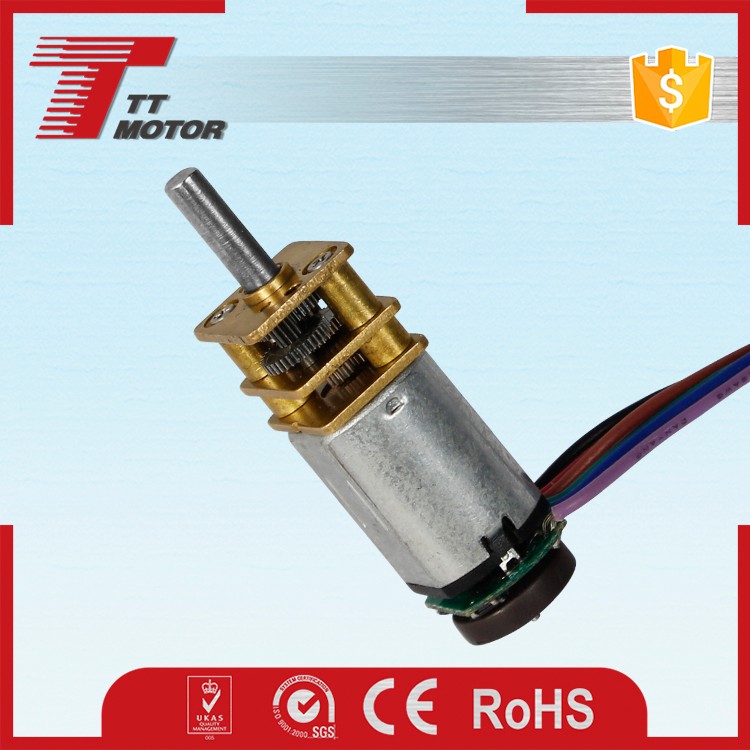

3v dc mini gear motor 12mm electric motor with encoder
Main Features

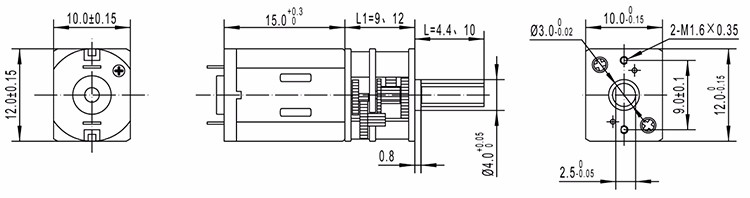

- 12*10 mm gearbox plus N20 & N30 permanent magnet dc motor
- Small size dc gear motor with low speed and big torque
- 12mm gear motor provide 0.1Nm torque and more reliable
- Suitable to small diameter, low noise and big torque application

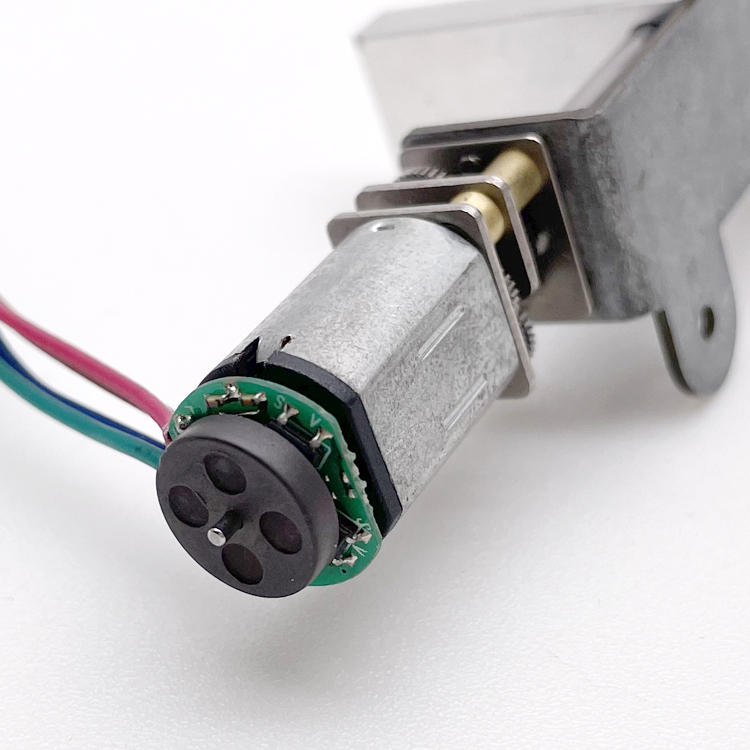

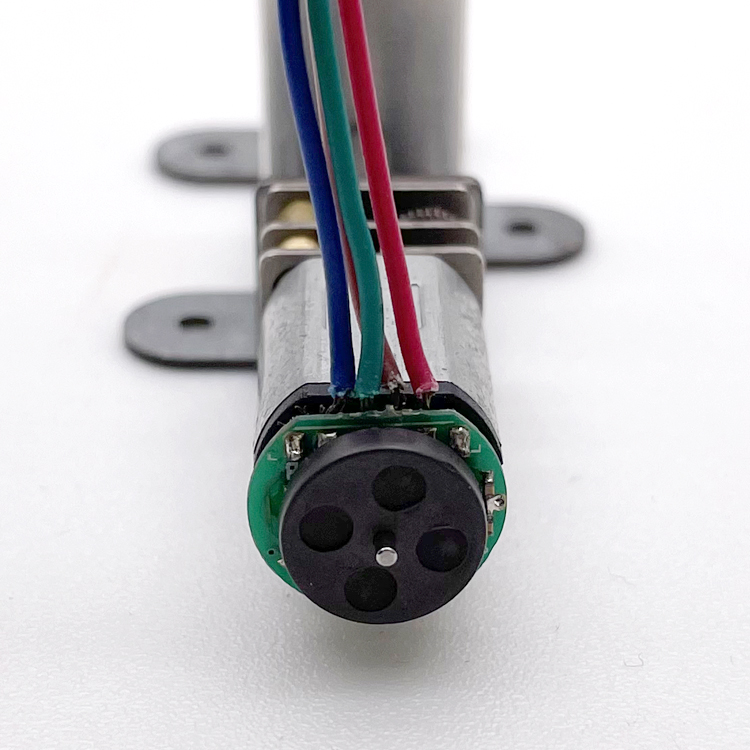

- DC Gear motors can match encoder, 3ppr
- Reduction ratio: 3, 5, 10, 20, 30, 50, 63, 100, 150, 210, 250, 298, 380, 1000
Model specifications: GM12-N20VA
| Model | Voltage Specs | Speed Specs | Torque & Current Specs |
|---|---|---|---|
| TFF-N20VA-13110 | Rated voltage: 2.4V DC | Rated speed: 12000r/min No-load speed: 14800r/min |
Output power: 0.31W Rated torque: 2.5g.cm Stall torque: 13g/cm |
| No-load current: 60mA | Rated current: 200mA | Stall current: 1.20A | |
| TFF-N20VA-09220 | Rated voltage: 5V DC | Rated speed: 12200r/min No-load speed: 15000r/min |
Output power: 0.31W Rated torque: 2.5g.cm Stall torque: 13g/cm |
| No-load current: 30mA | Rated current: 120mA | Stall current: 0.6A | |
| TFF-N20VA-05430 | Rated voltage: 12V DC | Rated speed: 12500r/min No-load speed: 16000r/min |
Output power: 0.35W Rated torque: 3.0g.cm Stall torque: 13g/cm |
| No-load current: 15mA | Rated current: 60mA | Stall current: 0.25A | |
GM12-N20VA-13110-EN Performance Data
| Reduction ratio | 10 | 30 | 50 | 100 | 150 | 210 | 250 | 298 | 380 |
|---|---|---|---|---|---|---|---|---|---|
| Length (mm) | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |
| No-load speed (rpm) | 1450 | 470 | 285 | 145 | 96 | 69 | 58 | 50 | 38 |
| Rated speed (rpm) | 1200 | 400 | 240 | 120 | 80 | 57 | 48 | 40 | 31 |
| Rated torque (kg.cm) | 0.015 | 0.05 | 0.07 | 0.15 | 0.22 | 0.31 | 0.37 | 0.45 | 0.5 |
| Max. tolerance torque (kg.cm) | 0.08 | 0.23 | 0.4 | 0.8 | 1.1 | 1.5 | 1.6 | 1.9 | 2.5 |
GM12-N20VA-09220-EN Performance Data
| Reduction ratio | 10 | 30 | 50 | 100 | 150 | 210 | 250 | 298 | 380 |
|---|---|---|---|---|---|---|---|---|---|
| Length (mm) | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |
| No-load speed (rpm) | 1480 | 490 | 290 | 150 | 98 | 70 | 60 | 50 | 38 |
| Rated speed (rpm) | 1220 | 405 | 245 | 122 | 81 | 57 | 48 | 40 | 31 |
| Rated torque (kg.cm) | 0.015 | 0.05 | 0.07 | 0.15 | 0.22 | 0.31 | 0.37 | 0.45 | 0.5 |
| Max. tolerance torque (kg.cm) | 0.08 | 0.23 | 0.4 | 0.8 | 1.1 | 1.5 | 1.6 | 1.9 | 2.5 |
GM12-N20VA-05430-EN Performance Data
| Reduction ratio | 10 | 30 | 50 | 100 | 150 | 210 | 250 | 298 | 380 |
|---|---|---|---|---|---|---|---|---|---|
| Length (mm) | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |
| No-load speed (rpm) | 1550 | 530 | 310 | 160 | 110 | 78 | 60 | 55 | 43 |
| Rated speed (rpm) | 1100 | 400 | 250 | 125 | 83 | 60 | 50 | 42 | 33 |
| Rated torque (kg.cm) | 0.02 | 0.05 | 0.08 | 0.18 | 0.27 | 0.37 | 0.45 | 0.5 | 0.5 |
| Max. tolerance torque (kg.cm) | 0.1 | 0.2 | 0.4 | 0.8 | 1.1 | 1.5 | 1.6 | 1.9 | 2.5 |
Product Application
- Automatic door operators
- Automatic energy saving bath
- Electrical controlled valve
- Oxygen machine
- Optical equipment
- Automat cordless power tool
- Lighting and various applications

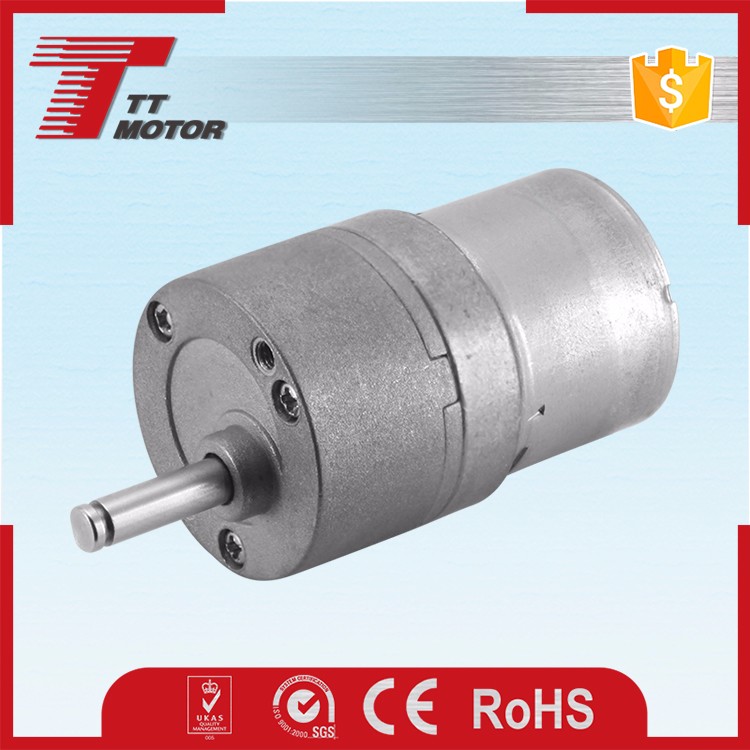

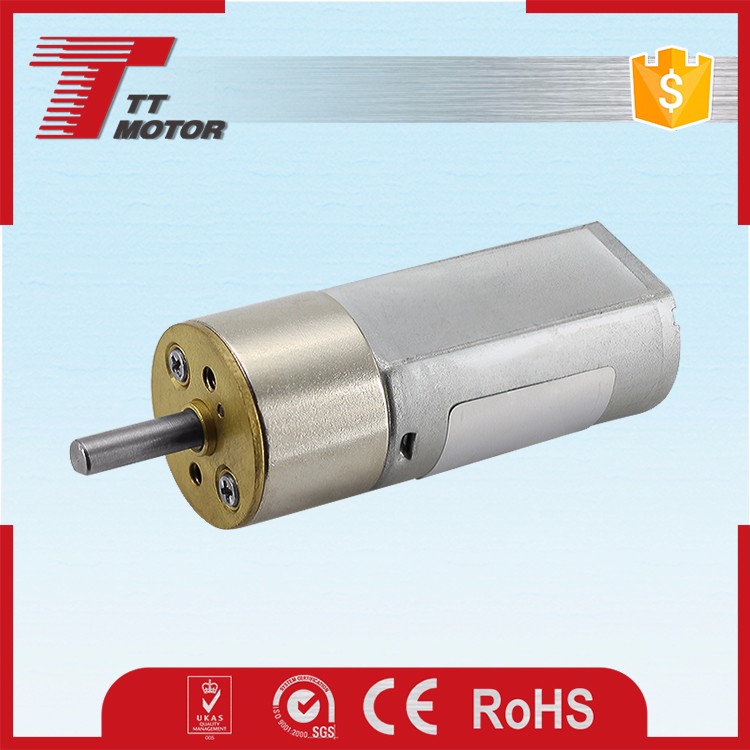

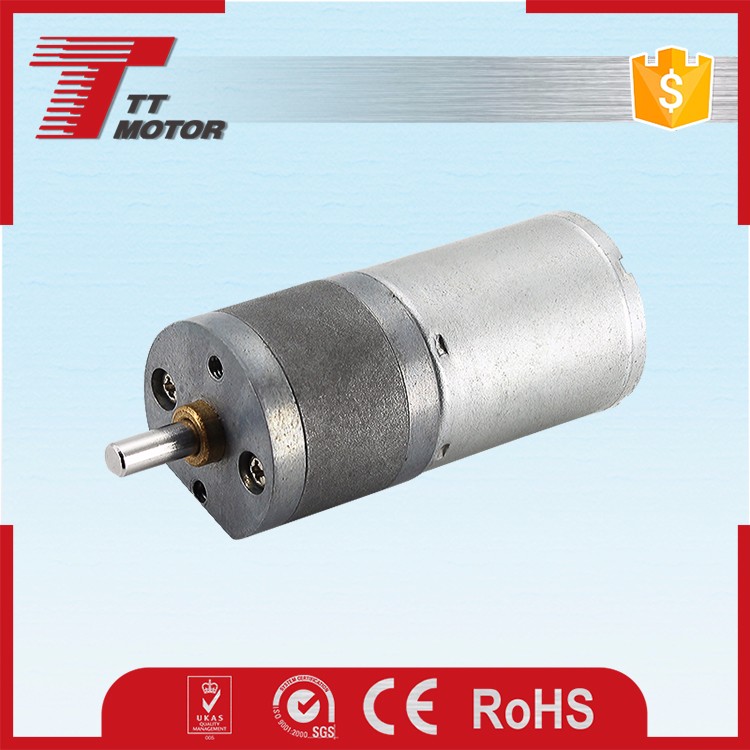

Related Products
Packing & Delivery
Packaging: Single carton packing, 500 pieces per box.
Estimated Shipping Transit Times:
- DHL: 3-5 working days
- UPS: 5-7 working days
- TNT: 5-7 working days
- FedEx: 7-9 working days
- EMS: 12-15 working days
- China Post: Transit time depends on the destination country
- Sea Freight: Transit time depends on the destination port

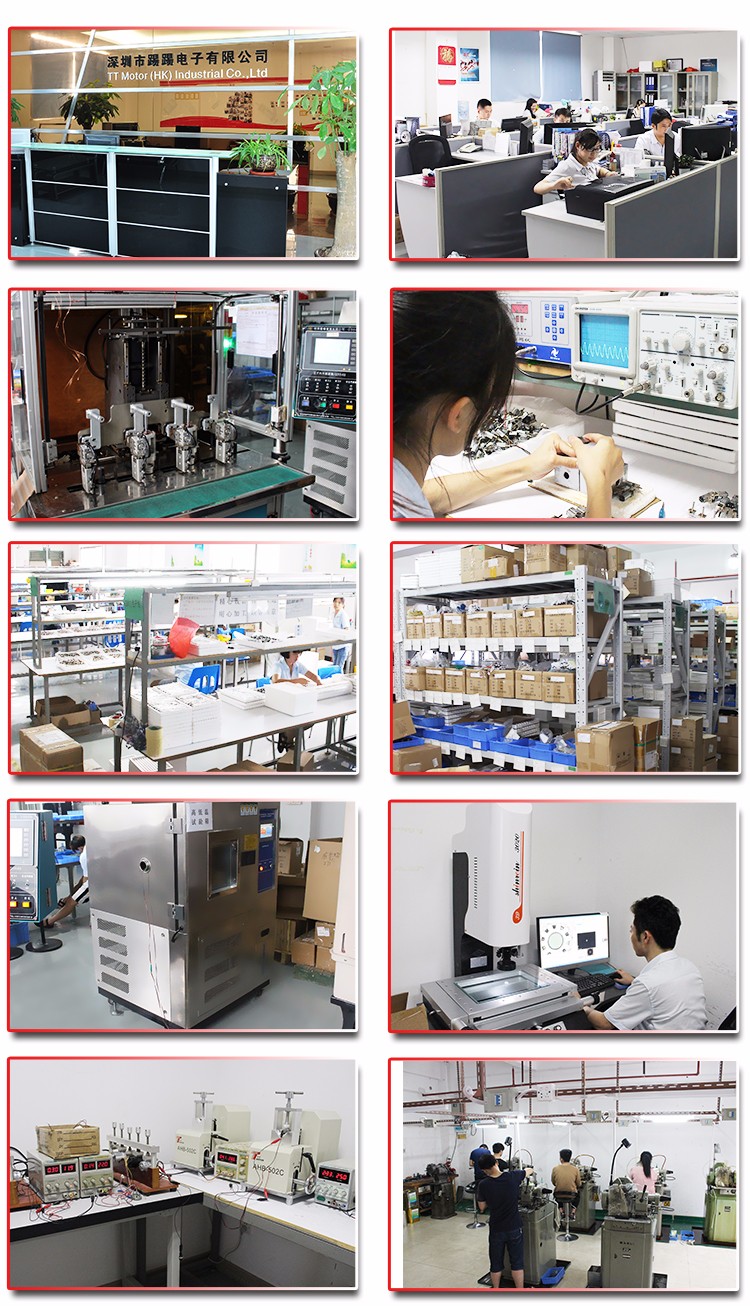

Manufacturing & Experience
Specializing in micro motors, gear motors and their respective parts since 2000. The products are widely utilized in entertainment systems, automobiles, home and industrial appliances, power tools, and multiple other sectors. Engineered for dependability and durability, all products are backed by decades of technical expertise, with 98% of the output exported to global markets. Through commitment to quality and service, the team aims to establish long-term partnerships with distributors, agents, and end-users worldwide.
