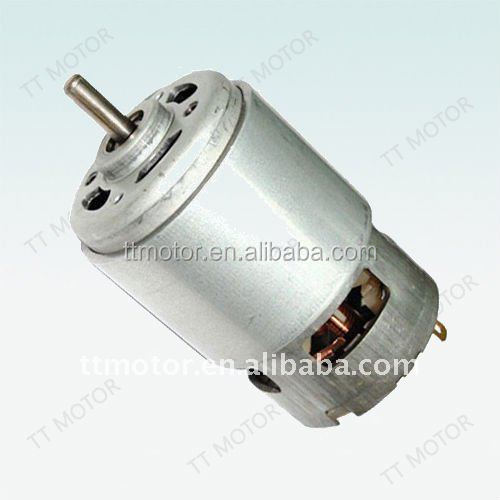

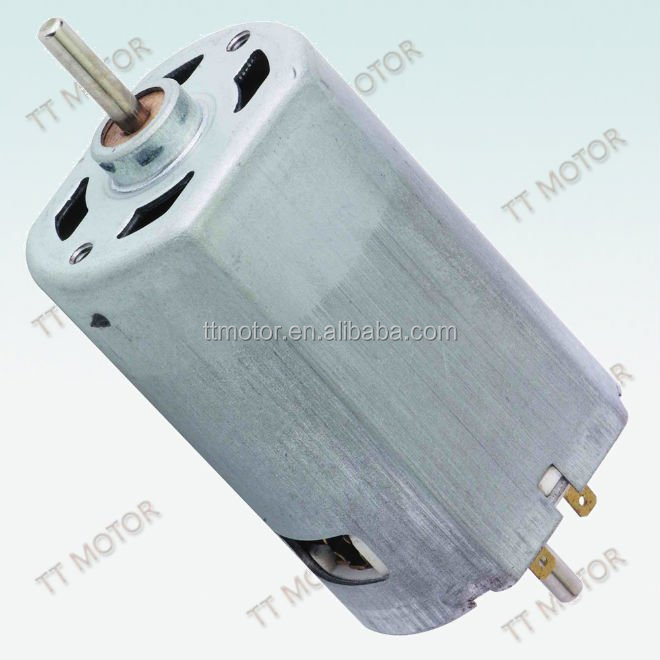

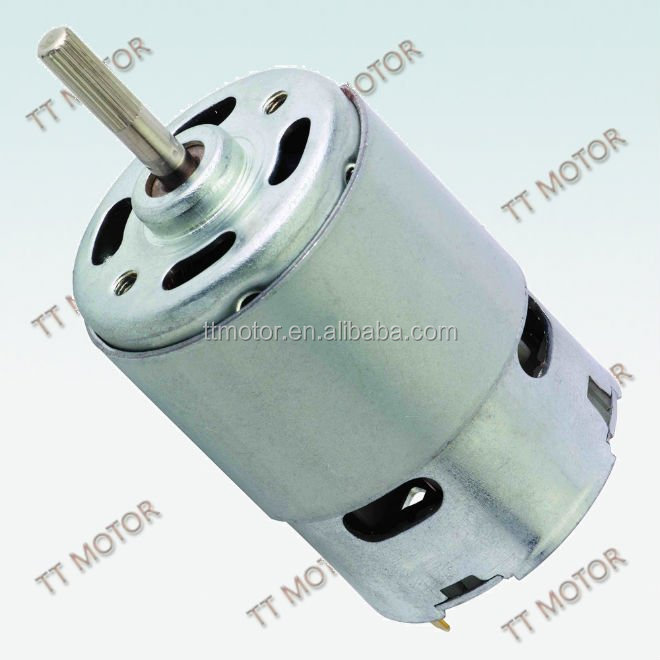

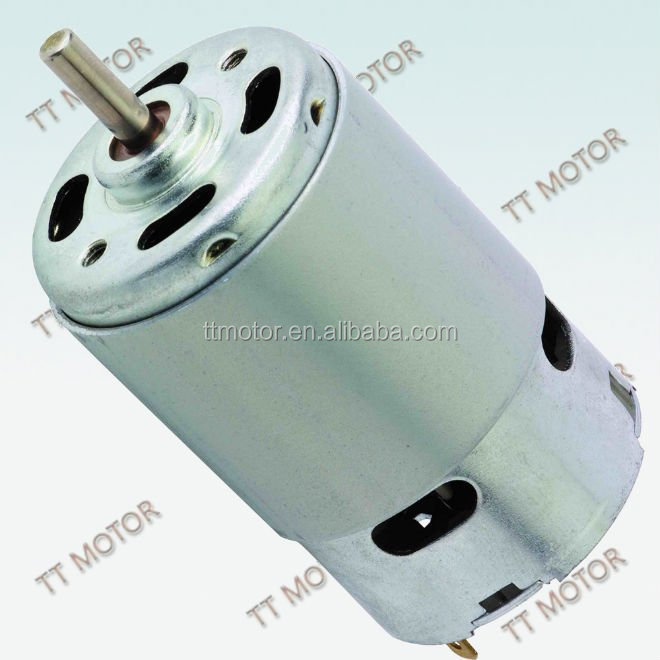

TRS-550PM or 24v Dc Motor
Product Description
24v dc motor, TRS-550PM
- Voltage: 120V
- Speed: 18000 RPM
- Torque: 3512g.cm
- Low current, noise, no spark, no vibration
- Typical Applications: Ride-on Toy, Grass trimmer, Air Compressor, Drill
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| V | r/min | A | r/min | A | mN.m | g.cm | w | mN.m | g.cm | A | |||
| TRS-550PM | 35100 | 3.0-18.0 | 12.0 | 5200 | 0.25 | 4330 | 1.60 | 29.41 | 300 | 13.3 | 176.47 | 1800 | 8.32 |
| 6530 | 6.0-12.0 | 12.0 | 18000 | 1.30 | 16100 | 7.15 | 41.18 | 420 | 69.0 | 344.31 | 3512 | 52.0 | |
Frequently Asked Questions
What are the primary applications of the TRS-550PM DC motor?
The TRS-550PM DC motor is widely used in high-demand consumer and power devices, including ride-on toys, grass trimmers, air compressors, and electric drills.
What is the operating voltage range for this motor model?
Depending on the winding configuration, the operating voltage range varies. The 35100 winding model operates within 3.0V to 18.0V, while the 6530 winding model operates within 6.0V to 12.0V, both at a nominal 12.0V rating.
How fast does the TRS-550PM motor run under no-load conditions?
Under nominal 12.0V inputs, the speed reaches up to 5,200 RPM for the 35100 winding design, and up to 18,000 RPM for the 6530 winding design.
Does this DC motor offer low noise and vibration?
Yes, the TRS-550PM motor is engineered to operate with low noise, minimal vibration, low start current, and no spark emission to ensure high efficiency and durability.
What is the maximum torque capability of this motor?
At stall conditions, the TRS-550PM motor (6530 winding) can deliver a peak torque of up to 3512 g.cm (344.31 mN.m) at a nominal 12V input.
