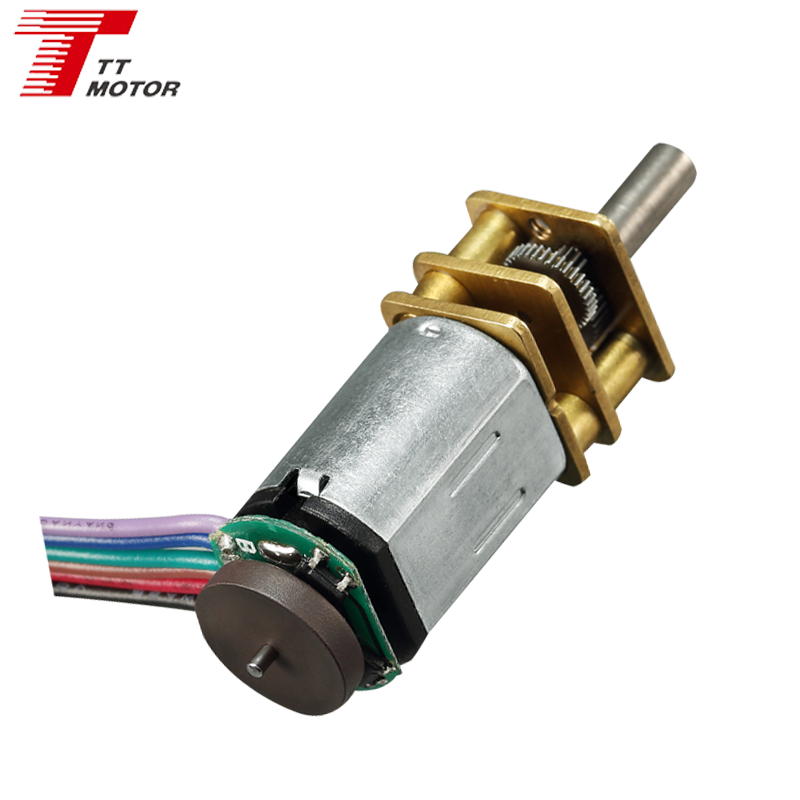

GM12-N20VA DC 6v Mini Metal N20 Gear Motor With Encoder
Product Description
GM12-N20VA DC 6v Mini Metal N20 Gear Motor with Encoder
Main Features

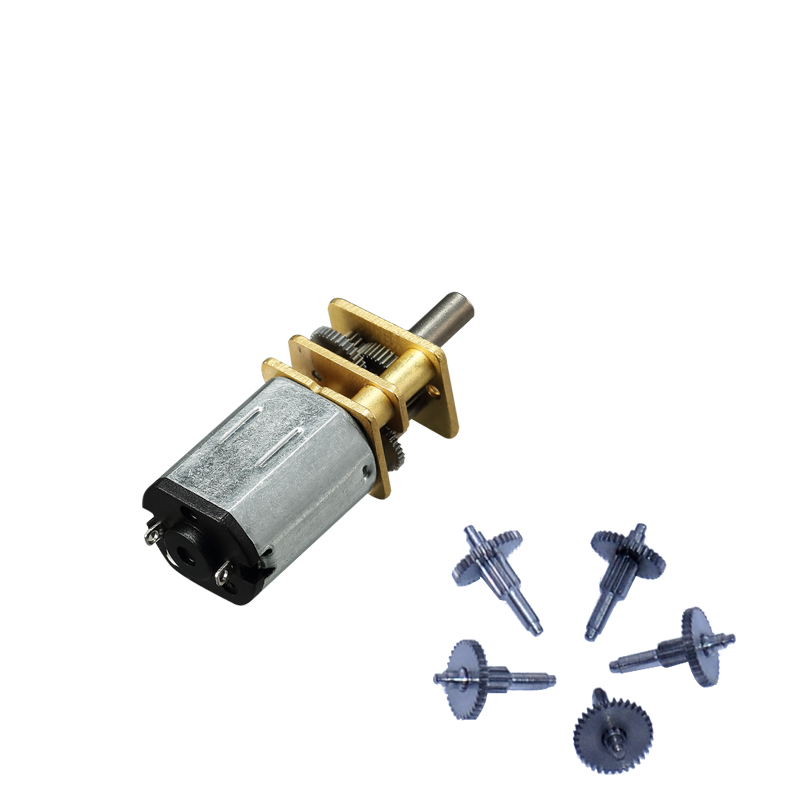

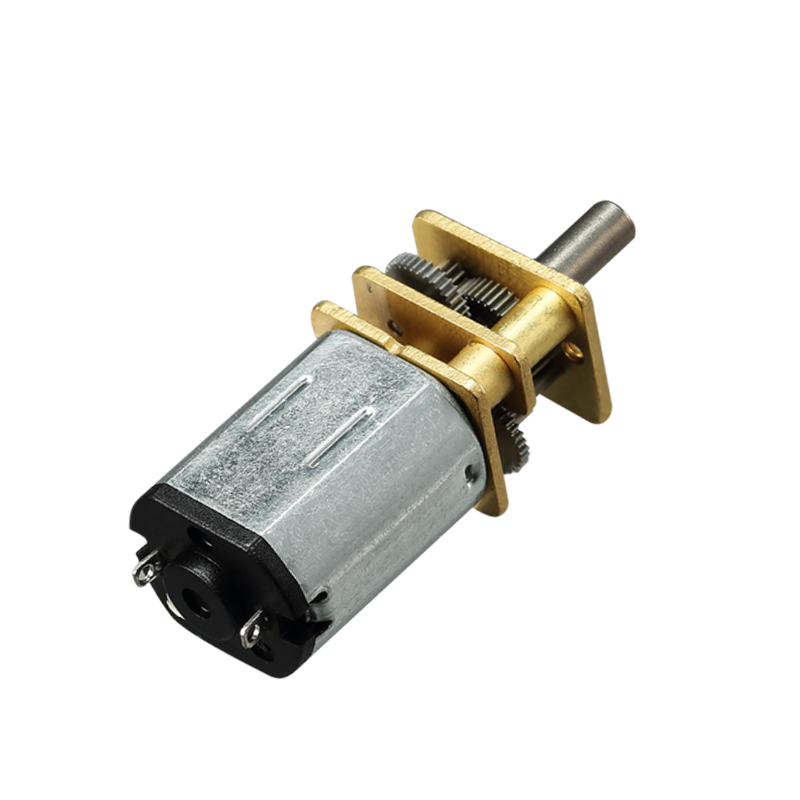

- 12*10 mm gearbox plus N20 & N30 permanent magnet DC motor
- Small size DC gear motor with low speed and big torque
- 12mm gear motor provides 0.1Nm torque and high reliability
- Suitable for small diameter, low noise, and big torque applications

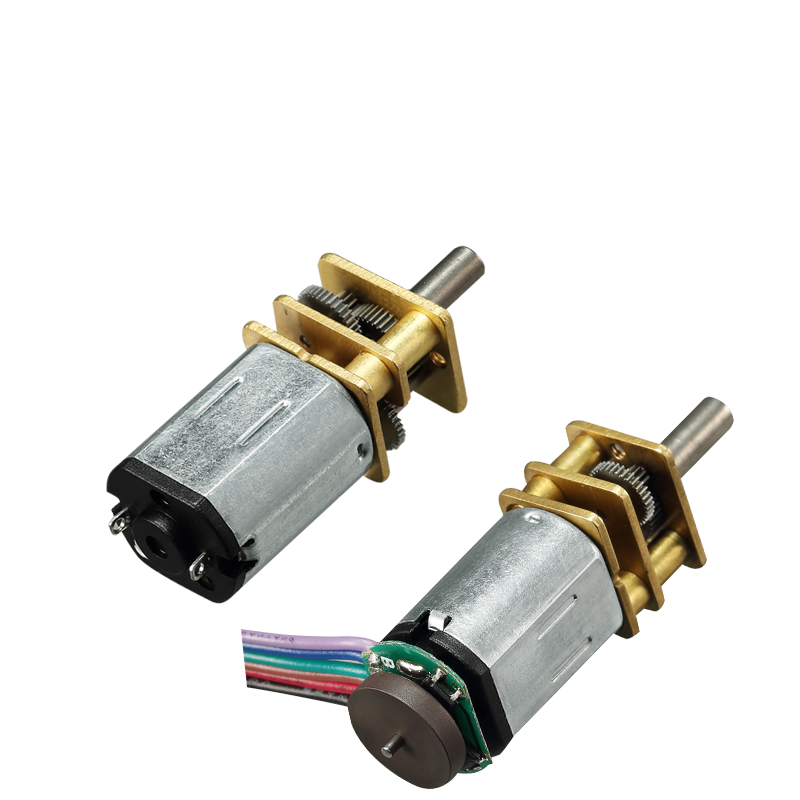

- DC Gear motors can match encoder, 3ppr
- Reduction ratio: 3, 5, 10, 20, 30, 50, 63, 100, 150, 210, 250, 298, 380, 1000
Model Specification: GM12-N20VA
| Model Code | Voltage | No-Load Specs | Rated Specs | Stall Specs | Output Power |
|---|---|---|---|---|---|
| TFF-N20VA-13110 | 2.4V DC | Speed: 14800 r/min | Speed: 12000 r/min | Torque: 13 g/cm | 0.31W |
| Current: 60mA | Torque: 2.5 g.cm | Current: 1.20A | |||
| - | Current: 200mA | - | |||
| TFF-N20VA-09220 | 5V DC | Speed: 14800 r/min | Speed: 12000 r/min | Torque: 13 g/cm | 0.31W |
| Current: 30mA | Torque: 2.5 g.cm | Current: 0.52A | |||
| - | Current: 120mA | - | |||
| TFF-N20VA-05430 | 12V DC | Speed: 16000 r/min | Speed: 12500 r/min | Torque: 13 g/cm | 0.35W |
| Current: 15mA | Torque: 3.0 g.cm | Current: 0.25A | |||
| - | Current: 60mA | - |
Parameters: GM12-N20VA-13110-xxx
| Reduction Ratio | 10 | 30 | 50 | 100 | 150 | 210 | 250 | 298 | 380 |
|---|---|---|---|---|---|---|---|---|---|
| Length (mm) | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |
| No-load speed (rpm) | 1450 | 470 | 285 | 145 | 96 | 69 | 58 | 50 | 38 |
| Rated speed (rpm) | 1200 | 400 | 240 | 120 | 80 | 57 | 48 | 40 | 31 |
| Rated torque (kg.cm) | 0.015 | 0.05 | 0.07 | 0.15 | 0.22 | 0.31 | 0.37 | 0.45 | 0.5 |
| Max. tolerance torque (kg.cm) | 0.08 | 0.23 | 0.4 | 0.8 | 1.1 | 1.5 | 1.6 | 1.9 | 2.5 |
Parameters: GM12-N20VA-09220-xxx
| Reduction Ratio | 10 | 30 | 50 | 100 | 150 | 210 | 250 | 298 | 380 |
|---|---|---|---|---|---|---|---|---|---|
| Length (mm) | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |
| No-load speed (rpm) | 1450 | 470 | 285 | 145 | 96 | 69 | 58 | 50 | 38 |
| Rated speed (rpm) | 1200 | 400 | 240 | 120 | 80 | 57 | 48 | 40 | 31 |
| Rated torque (kg.cm) | 0.015 | 0.05 | 0.07 | 0.15 | 0.22 | 0.31 | 0.37 | 0.45 | 0.5 |
| Max. tolerance torque (kg.cm) | 0.08 | 0.23 | 0.4 | 0.8 | 1.1 | 1.5 | 1.6 | 1.9 | 2.5 |
Parameters: GM12-N20VA-05430-xxx
| Reduction Ratio | 10 | 30 | 50 | 100 | 150 | 210 | 250 | 298 | 380 |
|---|---|---|---|---|---|---|---|---|---|
| Length (mm) | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |
| No-load speed (rpm) | 1550 | 530 | 310 | 160 | 110 | 78 | 60 | 55 | 43 |
| Rated speed (rpm) | 1100 | 400 | 250 | 125 | 83 | 60 | 50 | 42 | 33 |
| Rated torque (kg.cm) | 0.02 | 0.05 | 0.08 | 0.18 | 0.27 | 0.37 | 0.45 | 0.5 | 0.5 |
| Max. tolerance torque (kg.cm) | 0.1 | 0.2 | 0.4 | 0.8 | 1.1 | 1.5 | 1.6 | 1.9 | 2.5 |
Product Dimension Drawing
Product Applications
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
| Other Applications Range | |||
|---|---|---|---|
| Business Machines | Vending Machines | Printers | ATM, Copiers, and Scanners |
| Camera and Optical | Video | Cameras | Projectors |
| Lawn and Garden | Lawn Mowers | Snow Blowers | Trimmers, Leaf Blowers |
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
