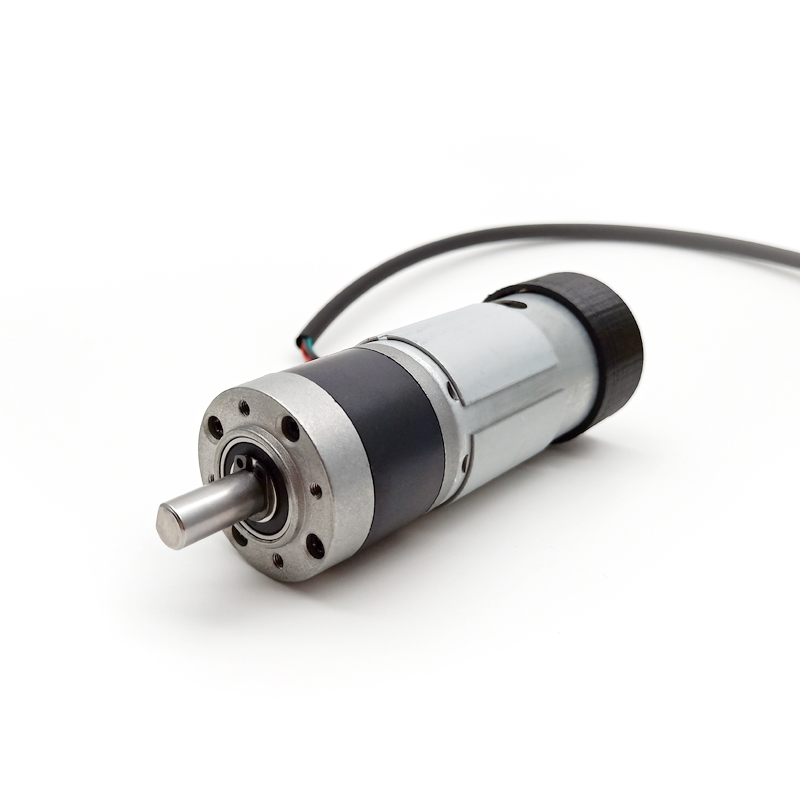

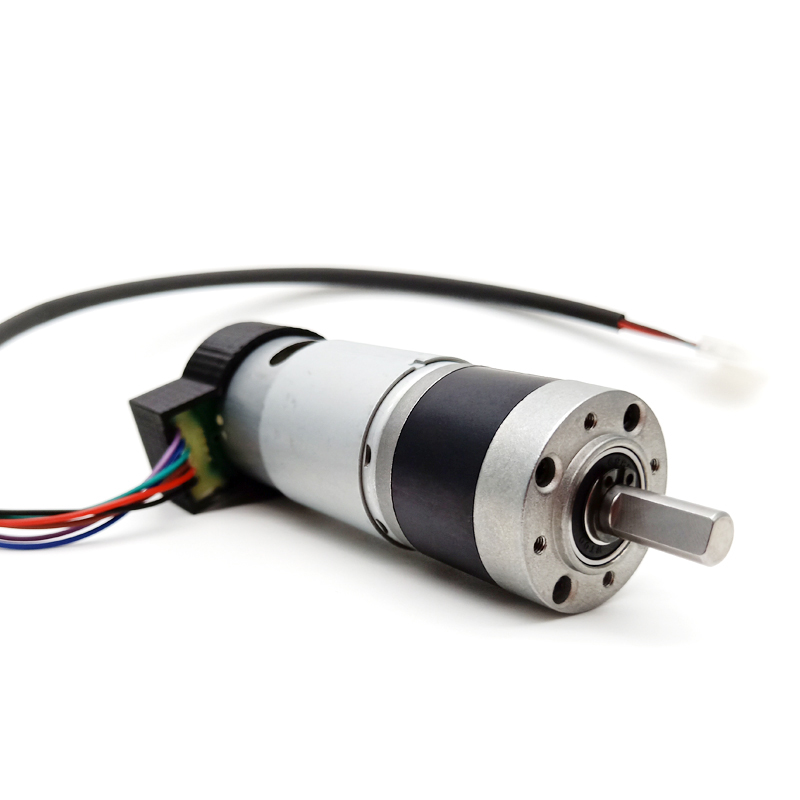

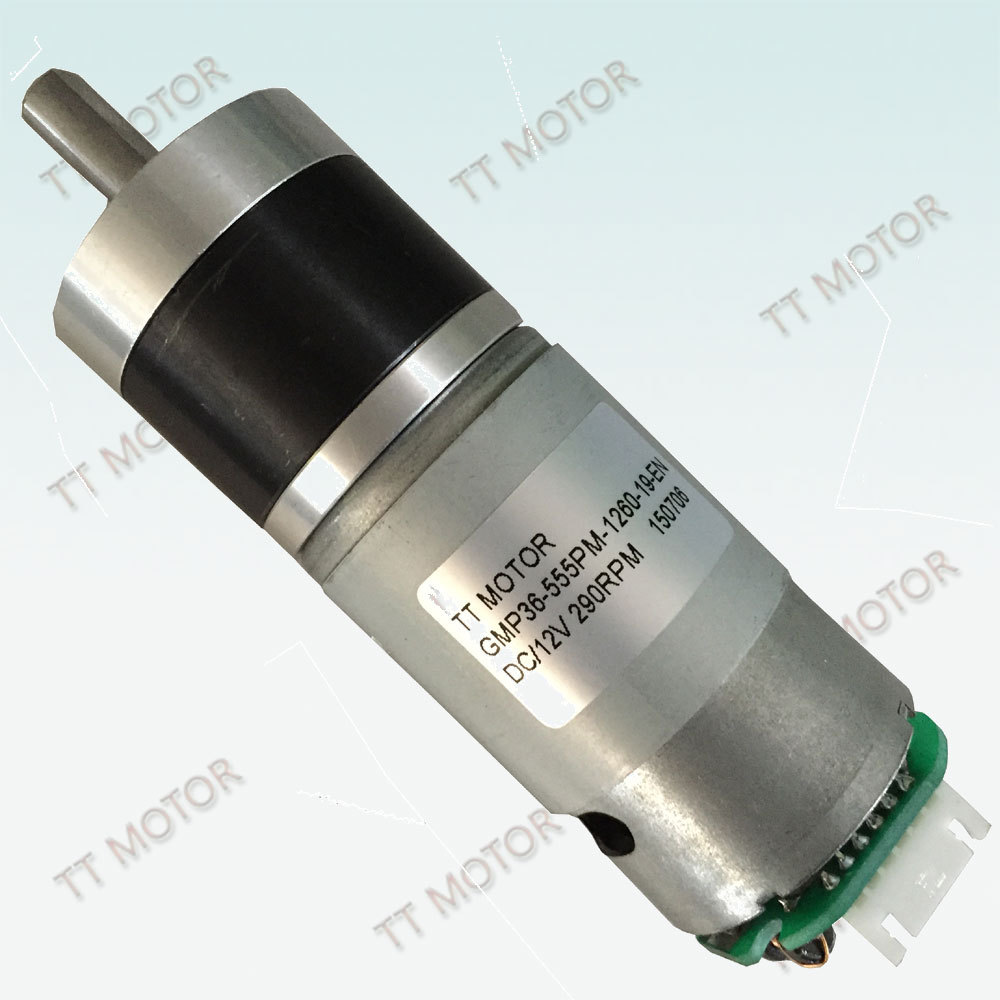

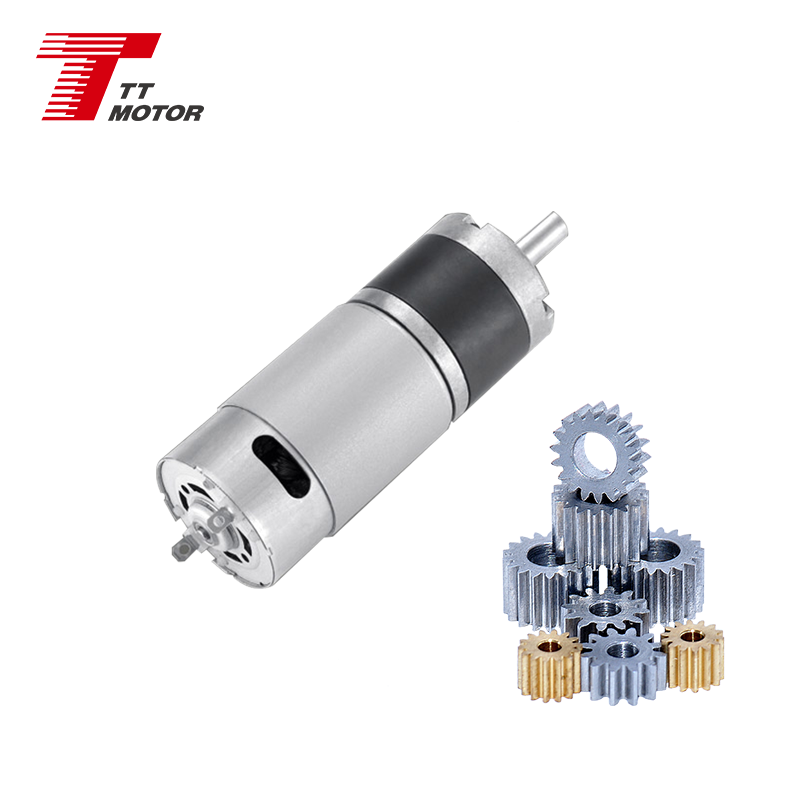

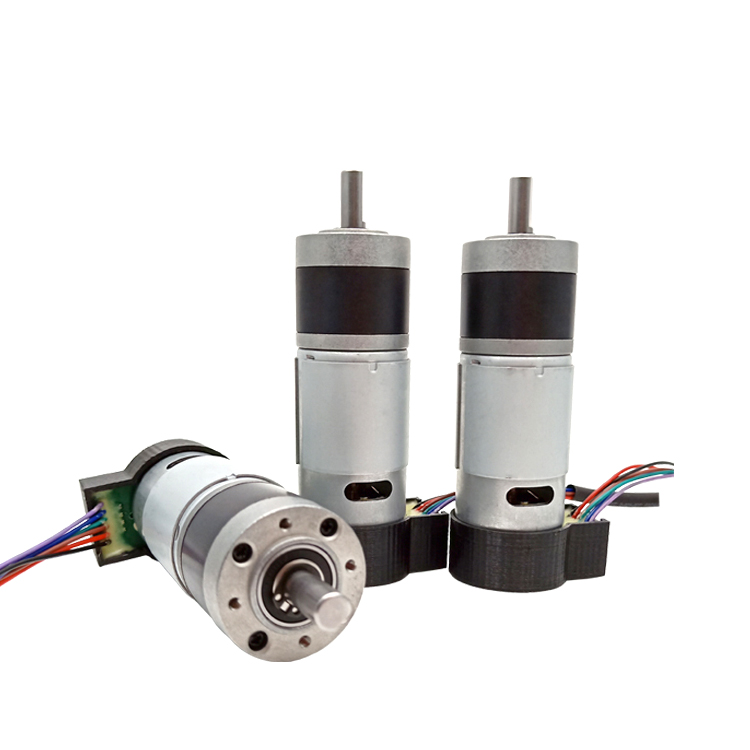

GMP36-555PM-EN Electric Motor Dc 24v Planetary Gear Motor Encoder
Product Description
GMP36-555PM-EN Electric Motor DC 24V Planetary Gear Motor Encoder
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, 12V DC gear motor, optical equipment, automat cordless power tool, lighting, etc.
| Model: Gear Motor GMP36-555PM | |||
|---|---|---|---|
| TTRS-555PM-1233 | Rated voltage: 12VDC | Rated speed: 2800r/min | Output power: 5.7W |
| No-load speed: 3300r/min | Rated torque: 200g.cm | Stall torque: 1150g.cm | |
| No-load current: 200mA | Rated current: 1000mA | Stall current: 5.5A | |
| TTRS-555PM-1260 | Rated voltage: 12VDC | Rated speed: 5250r/min | Output power: 16W |
| No-load speed: 6000r/min | Rated torque: 290g.cm | Stall torque: 2200g.cm | |
| No-load current: 300mA | Rated current: 2400mA | Stall current: 15.0A | |
| TTRS-555PM-2440 | Rated voltage: 24VDC | Rated speed: 3150r/min | Output power: 6.4W |
| No-load speed: 2400r/min | Rated torque: 200g.cm | Stall torque: 1000g.cm | |
| No-load current: 150mA | Rated current: 700mA | Stall current: 2.7A | |
Main Features
- 36mm Planetary reducer plus 3530, 5 series of carbon brush motor and TEC3650 & 3640 brushless motor.
- Small size DC gear motor with low speed and big torque.
- 36mm gear motor provides 3.0Nm torque and high reliability.
- Suitable for small diameter, low noise, and big torque applications.
- DC Gear motors can match encoder, 11pr.
- Reduction ratios: 4, 14, 19, 51, 71, 100, 139, 189, 264, 369, 516, 720.

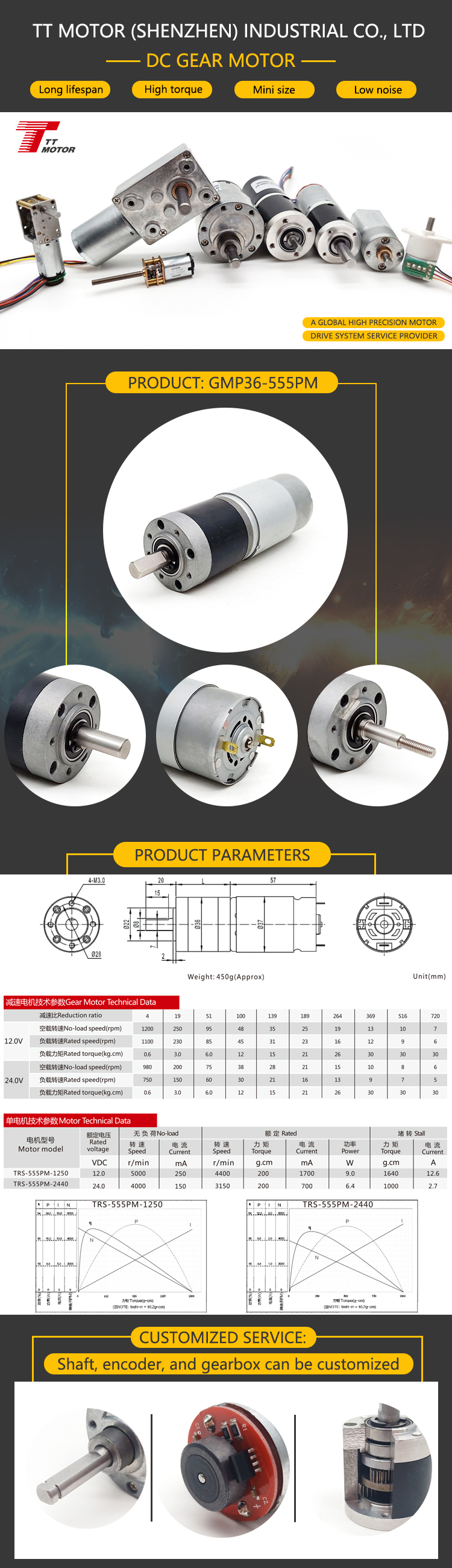

Specifications by Model
GMP36-555PM-1233-xxx Specification List:
| Parameter | Value 1 | Value 2 | Value 3 | Value 4 | Value 5 | Value 6 | Value 7 | Value 8 | Value 9 |
|---|---|---|---|---|---|---|---|---|---|
| Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 |
| Length mm | 26 | 33.5 | 33.5 | 40.5 | 40.5 | 47.5 | 47.5 | 47.5 | 47.5 |
| No-load speed rpm | 750 | 160 | 60 | 32 | 23 | 17 | 12 | 9 | 6 |
| Rated speed rpm | 700 | 150 | 55 | 28 | 20 | 15 | 11 | 8 | 5.5 |
| Rated torque kg.cm | 0.64 | 2.7 | 6 | 12 | 15 | 21 | 26 | 30 | 30 |
| Max. momentary torque kg.cm | 3.7 | 15 | 35 | 70 | 70 | 70 | 70 | 70 | 70 |
GMP36-555PM-1260-xxx Specification List:
| Parameter | Value 1 | Value 2 | Value 3 | Value 4 | Value 5 | Value 6 | Value 7 | Value 8 | Value 9 |
|---|---|---|---|---|---|---|---|---|---|
| Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 |
| Length mm | 26 | 33.5 | 33.5 | 40.5 | 40.5 | 47.5 | 47.5 | 47.5 | 47.5 |
| No-load speed rpm | 1400 | 300 | 110 | 55 | 42 | 32 | 23 | 16 | 11.5 |
| Rated speed rpm | 1300 | 275 | 100 | 50 | 38 | 28 | 20 | 15 | 10.5 |
| Rated torque kg.cm | 0.9 | 3.8 | 9 | 18 | 22 | 30 | 30 | 30 | 30 |
| Max. momentary torque kg.cm | 5 | 20 | 60 | 60 | 60 | 70 | 70 | 70 | 70 |
GMP36-555PM-2440-xxx Specification List:
| Parameter | Value 1 | Value 2 | Value 3 | Value 4 | Value 5 | Value 6 | Value 7 | Value 8 | Value 9 |
|---|---|---|---|---|---|---|---|---|---|
| Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 |
| Length mm | 26 | 33.5 | 33.5 | 40.5 | 40.5 | 47.5 | 47.5 | 47.5 | 47.5 |
| No-load speed rpm | 980 | 200 | 75 | 38 | 28 | 21 | 15 | 10 | 7.5 |
| Rated speed rpm | 750 | 155 | 60 | 30 | 21 | 16 | 13 | 9.5 | 7 |
| Rated torque kg.cm | 0.64 | 2.7 | 6 | 12 | 15 | 21 | 26 | 30 | 30 |
| Max. momentary torque kg.cm | 3.2 | 13 | 25 | 50 | 60 | 70 | 70 | 70 | 70 |
Detailed Product Applications
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Additional Applications Area
| Category | Application 1 | Application 2 | Application 3 | Application 4 |
|---|---|---|---|---|
| Business Machines | Vending Machines | Printers | ATM | Copiers and Scanners |
| Camera and Optical | Video | Cameras | Projectors | - |
| Lawn and Garden | Lawn Mowers | Snow Blowers | Trimmers | Leaf Blowers |
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
