GMP36-555PM-EN 12 Volt 24 Volt Electric Dc Geared Motor With Encoder

1 / 5

GMP36-555PM-EN 12 Volt 24 Volt Electric Dc Geared Motor With Encoder

Send Inquiry

Product Description

GMP36-555PM-EN 12 volt 24 volt electric dc geared motor with encoder

Main Features

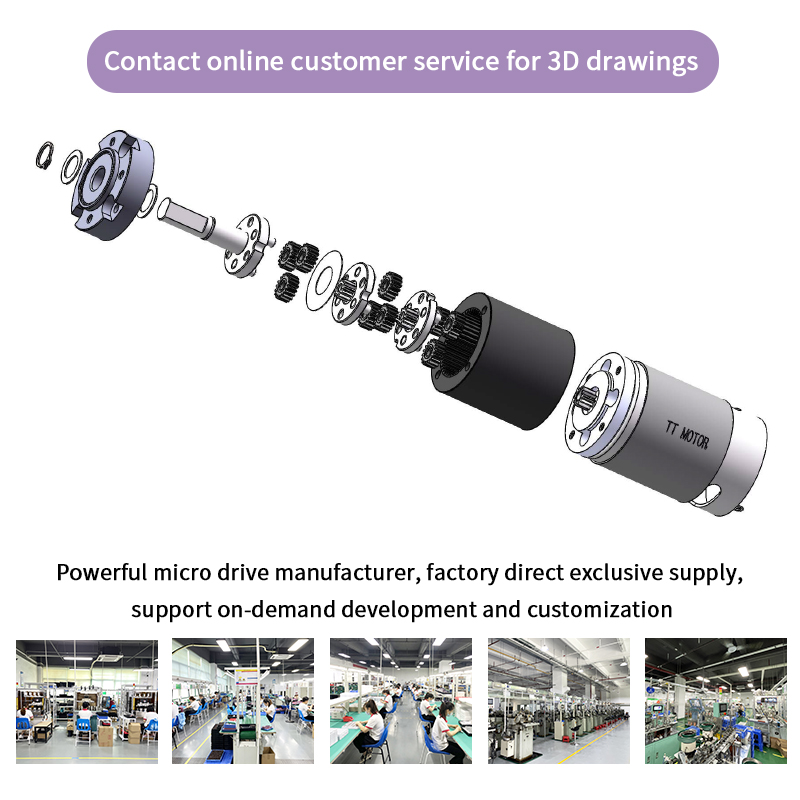

36mm Planetary reducer plus 3530,5 series of carbon brush motor and TEC3650 & 3640 brushless motor
Small size dc gear motor with low speed and big torque

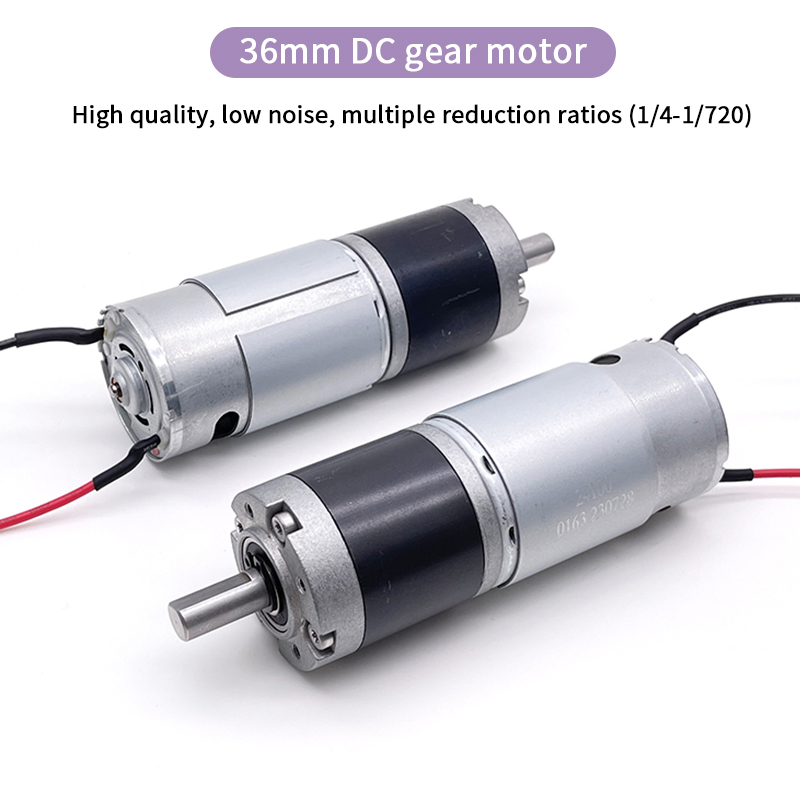

36mm gear motor provide 3.0Nm torque and more reliable
Suitable to small diameter, low noise and big torque application

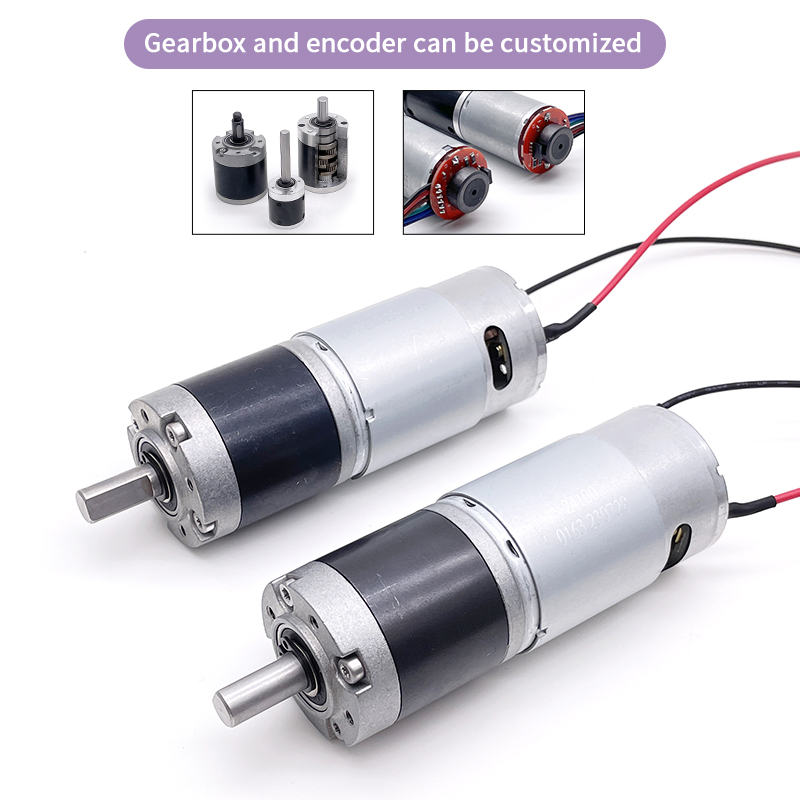

Dc Gear motors can match encoder, 11pr
Reduction ratio: 4, 14, 19, 51, 71, 100, 139, 189, 264, 369, 516, 720

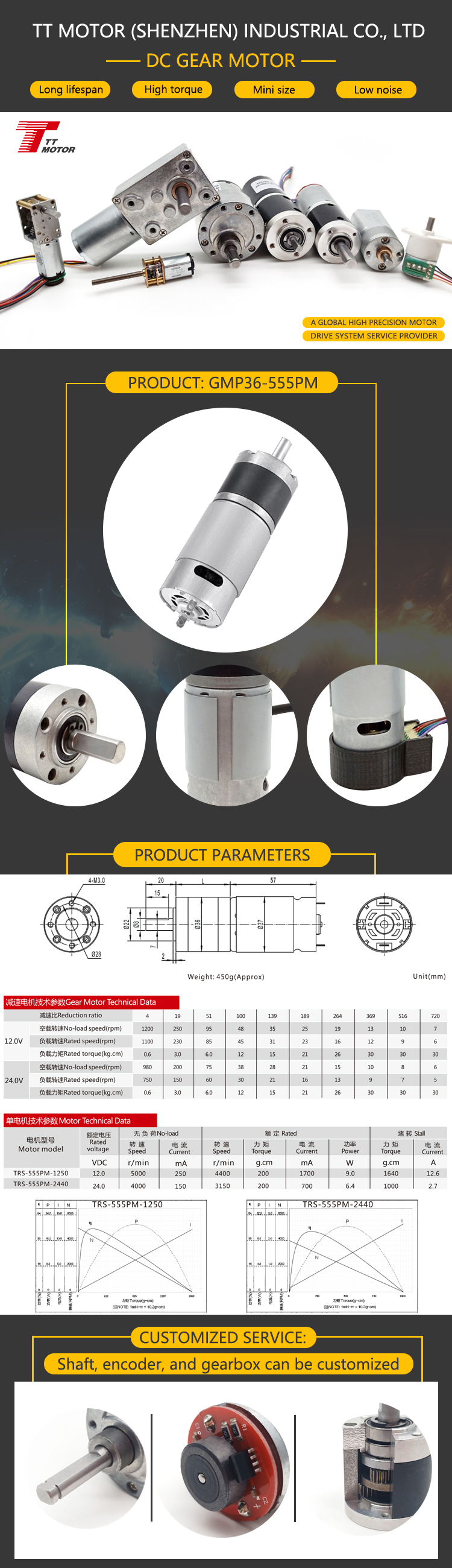

Specifications

Model: Gear Motor GMP36-555PM
TTRS-555PM-1233	Rated voltage: 12VDC	Rated speed: 2800r/min	Output power: 5.7W
	No-load speed: 3300r/min	Rated torque: 200g.cm	Stall torque: 1150g.cm
	No-load current: 200mA	Rated current: 1000mA	Stall current: 5.5A
TTRS-555PM-1260	Rated voltage: 12VDC	Rated speed: 5250r/min	Output power: 16W
	No-load speed: 6000r/min	Rated torque: 290g.cm	Stall torque: 2200g.cm
	No-load current: 300mA	Rated current: 2400mA	Stall current: 15.0A
TTRS-555PM-2440	Rated voltage: 24VDC	Rated speed: 3150r/min	Output power: 6.4W
	No-load speed: 2400r/min	Rated torque: 200g.cm	Stall torque: 1000g.cm
	No-load current: 150mA	Rated current: 700mA	Stall current: 2.7A

GMP36-555PM-1233-xxx Performance

Reduction ratio	4	19	51	100	139	189	264	369	516
Length mm	26	33.5	33.5	40.5	40.5	47.5	47.5	47.5	47.5
No-load speed rpm	750	160	60	32	23	17	12	9	6
Rated speed rpm	700	150	55	28	20	15	11	8	5.5
Rated torque kg.cm	0.64	2.7	6	12	15	21	26	30	30
Max. tolerance torque kg.cm	3.7	15	35	70	70	70	70	70	70

GMP36-555PM-1260-xxx Performance

Reduction ratio	4	19	51	100	139	189	264	369	516
Length mm	26	33.5	33.5	40.5	40.5	47.5	47.5	47.5	47.5
No-load speed rpm	1400	300	110	55	42	32	23	16	11.5
Rated speed rpm	1300	275	100	50	38	28	20	15	10.5
Rated torque kg.cm	0.9	3.8	9	18	22	30	30	30	30
Max. tolerance torque kg.cm	5	20	60	60	60	70	70	70	70

GMP36-555PM-2440-xxx Performance

Reduction ratio	4	19	51	100	139	189	264	369	516
Length mm	26	33.5	33.5	40.5	40.5	47.5	47.5	47.5	47.5
No-load speed rpm	980	200	75	38	28	21	15	10	7.5
Rated speed rpm	750	155	60	30	21	16	13	9.5	7
Rated torque kg.cm	0.64	2.7	6	12	15	21	26	30	30
Max. tolerance torque kg.cm	3.2	13	25	50	60	70	70	70	70

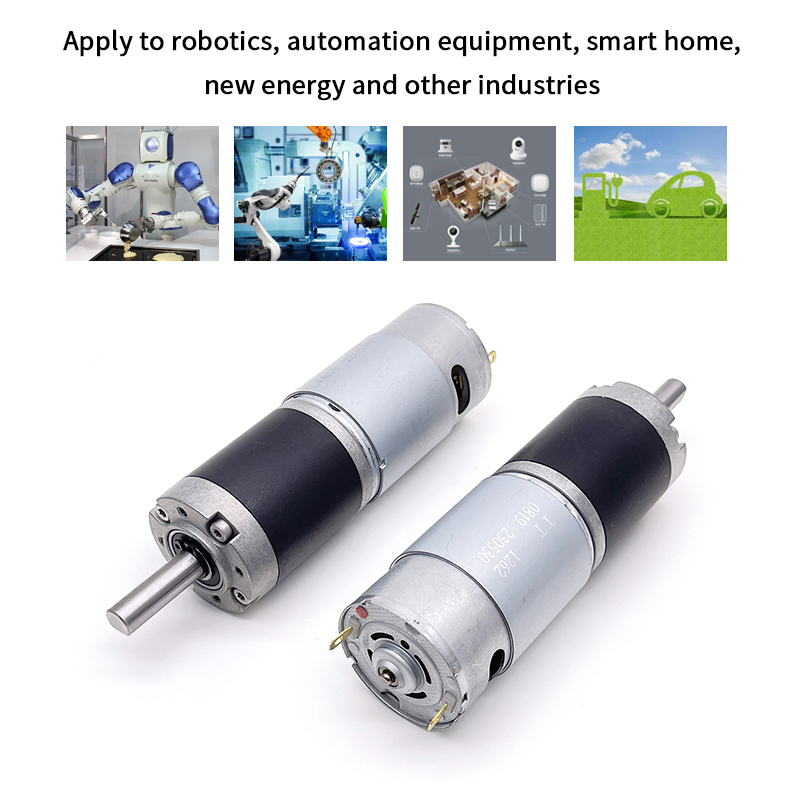

Product Application

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

Other Applications

Business Machines	Vending Machines, Printers, ATM, Copiers and Scanners
Camera and Optical	Video, Cameras, Projectors
Lawn and Garden	Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers

Certifications

ISO9001, SGS, National high-tech enterprises, etc.
