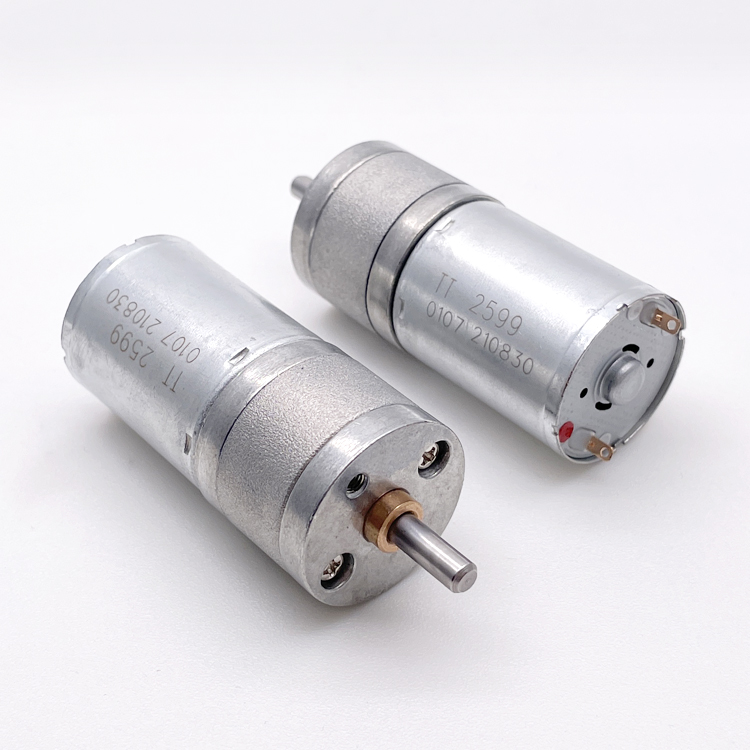

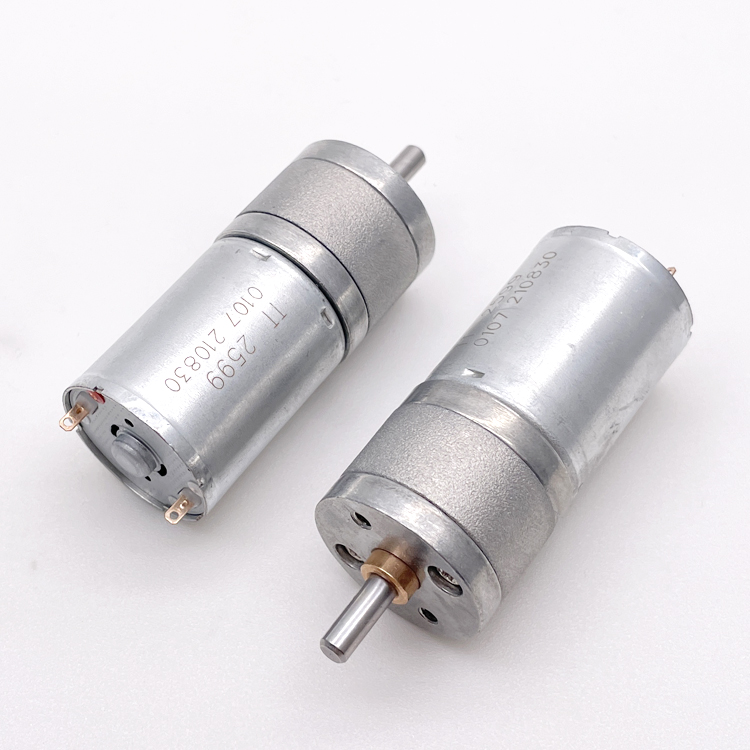

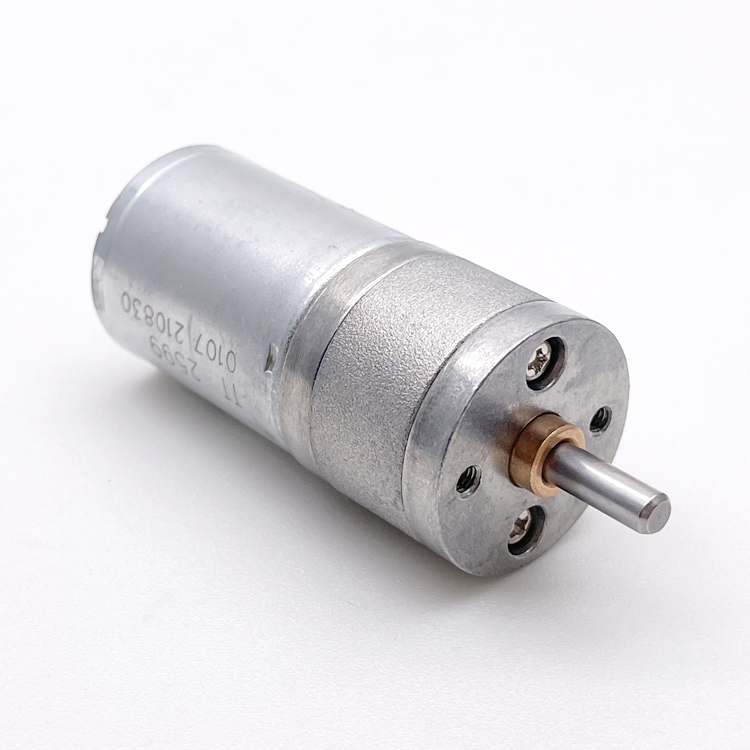

GM25-370CA Electric 12v Encoder Dc Gear Motor for Automatic Toys
Product Description
GM25-370CA Electric 12V Encoder DC Gear Motor for Automatic Toys
25mm Gearbox
Permanent Magnet DC Motor
Encoder Supported
Low Noise
Product Description & Application
Designed for precision movement and high torque applications, this versatile motor provides reliable power and integration options.
Typical Applications:
- ✔ Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, optical equipment, Automat cordless power tool, lighting, etc.
Main Features
- ◆ 25mm gearbox plus 370 & 320 permanent magnet DC motor
- ◆ Small size dc gear motor with low speed and big torque
- ◆ 25mm gear motor provide 0.5Nm torque and more reliable
- ◆ Suitable to small diameter, low noise and big torque application

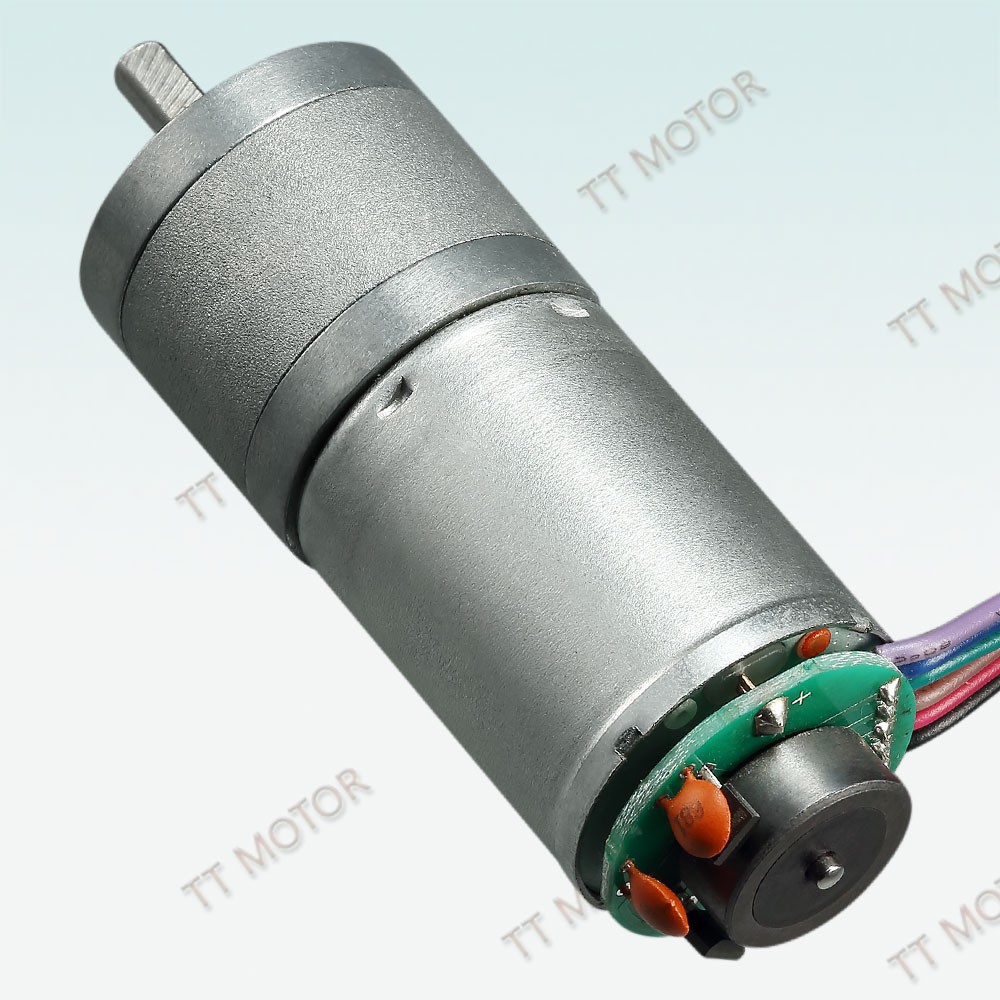

- ◆ DC gear motors can match encoder, 11ppr
- ◆ Reduction ratios: 4、10、21、34、45、47、78、103、130、172、227、378、499
Motor Performance Specs
| Model Details | Electrical Characteristics | No-Load Specs | Rated Performance | Stall Specs |
|---|---|---|---|---|
| TRK-370CA-22170 | Rated Voltage: 6VDC Output Power: 1.18W |
Speed: 5600 r/min Current: 50mA |
Speed: 4800 r/min Torque: 24 g.cm Current: 300mA |
Torque: 186 g.cm Current: 2.1A |
| TRK-370CA-15360 | Rated Voltage: 12VDC Output Power: 1.18W |
Speed: 5600 r/min Current: 25mA |
Speed: 4800 r/min Torque: 24 g.cm Current: 160mA |
Torque: 186 g.cm Current: 1.06A |
| TRK-370CA-12560 | Rated Voltage: 12VDC Output Power: 0.62W |
Speed: 3700 r/min Current: 20mA |
Speed: 3000 r/min Torque: 20 g.cm Current: 90mA |
Torque: 125 g.cm Current: 0.6A |
Gearbox Reduction Ratios & Performance
Model: GM25-370CA-22170-xxx
| Reduction Ratio | 4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 227 |
|---|---|---|---|---|---|---|---|---|---|
| Length (mm) | 17 | 19 | 19 | 21 | 21 | 23 | 23 | 25 | 25 |
| No-load speed (rpm) | 1280 | 510 | 245 | 150 | 110 | 68 | 50 | 42 | 24 |
| Rated speed (rpm) | 1200 | 480 | 230 | 137 | 102 | 62 | 47 | 37 | 21 |
| Rated torque (kg.cm) | 0.06 | 0.15 | 0.3 | 0.5 | 0.7 | 1.1 | 1.5 | 1.7 | 2.7 |
| Max. tolerance torque (kg.cm) | 0.45 | 1.1 | 2.3 | 3.9 | 5.2 | 10 | 10 | 10 | 10 |
Model: GM25-370CA-15360-xxx
| Reduction Ratio | 4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 227 |
|---|---|---|---|---|---|---|---|---|---|
| Length (mm) | 17 | 19 | 19 | 21 | 21 | 23 | 23 | 25 | 25 |
| No-load speed (rpm) | 1280 | 510 | 245 | 150 | 110 | 68 | 50 | 42 | 24 |
| Rated speed (rpm) | 1200 | 480 | 230 | 137 | 102 | 62 | 47 | 37 | 21 |
| Rated torque (kg.cm) | 0.06 | 0.15 | 0.3 | 0.5 | 0.7 | 1.1 | 1.5 | 1.7 | 2.7 |
| Max. tolerance torque (kg.cm) | 0.45 | 1.1 | 2.3 | 3.9 | 5.2 | 10 | 10 | 10 | 10 |
Model: GM25-370CA-12560-xxx
| Reduction Ratio | 4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 478 |
|---|---|---|---|---|---|---|---|---|---|
| Length (mm) | 17 | 19 | 19 | 21 | 21 | 23 | 23 | 25 | 27 |
| No-load speed (rpm) | 850 | 340 | 165 | 100 | 75 | 48 | 34 | 27 | 7.5 |
| Rated speed (rpm) | 750 | 300 | 145 | 86 | 64 | 38 | 29 | 23 | 6.3 |
| Rated torque (kg.cm) | 0.05 | 0.12 | 0.26 | 0.4 | 0.6 | 0.9 | 1.2 | 1.4 | 2.5 |
| Max. tolerance torque (kg.cm) | 0.3 | 0.75 | 1.5 | 2.6 | 3.5 | 10 | 10 | 10 | 10 |

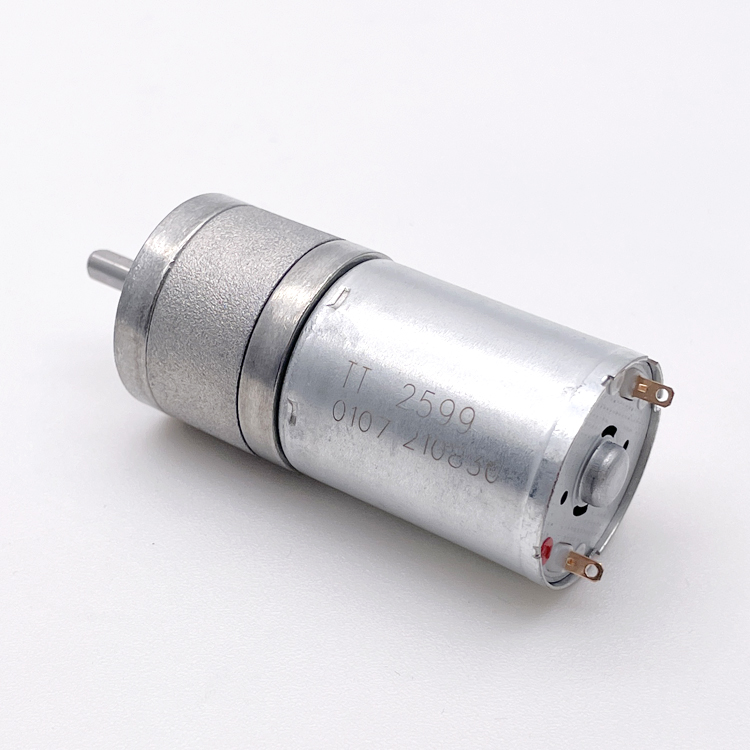

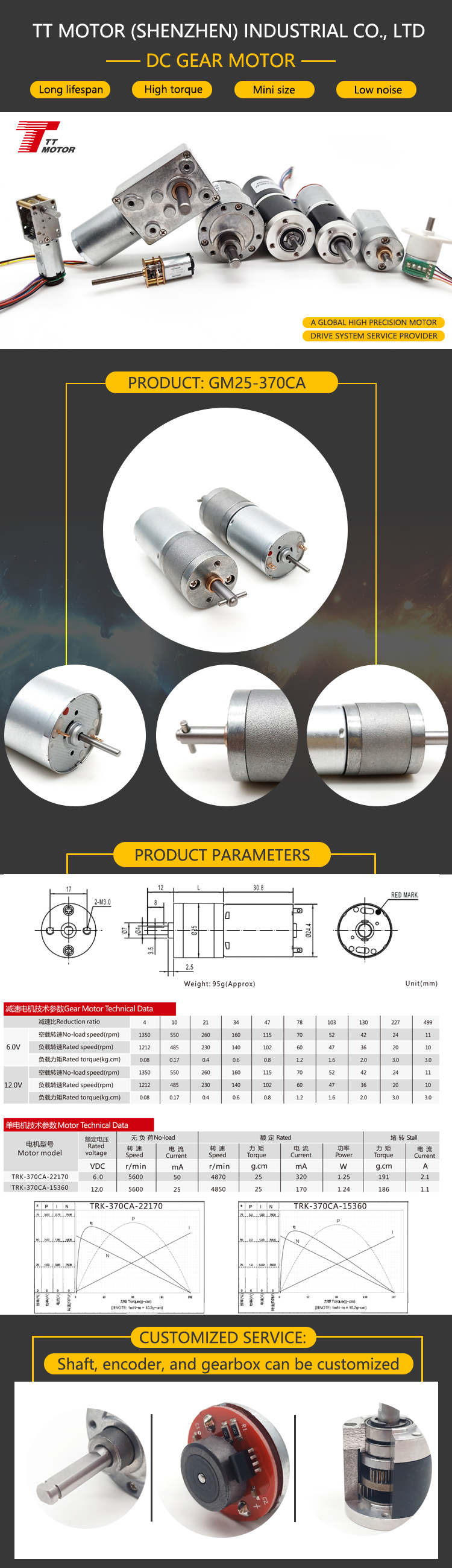

Product Imagery
Packaging & Shipping
| Specifications Reference | Case Pack (pcs) | Carton Size | Carton Gross Weight |
|---|---|---|---|
| GM12-N20VA | 840 | 41.5*34.5*18.5 CM | 10.5kg |
Application Details
Business Machines
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk.
Camera and Optical
Video, Cameras, Projectors.
Medical Equipment
Urine Analyzer, Blood Sugar Analyzer, Injector.
Lawn and Garden
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.

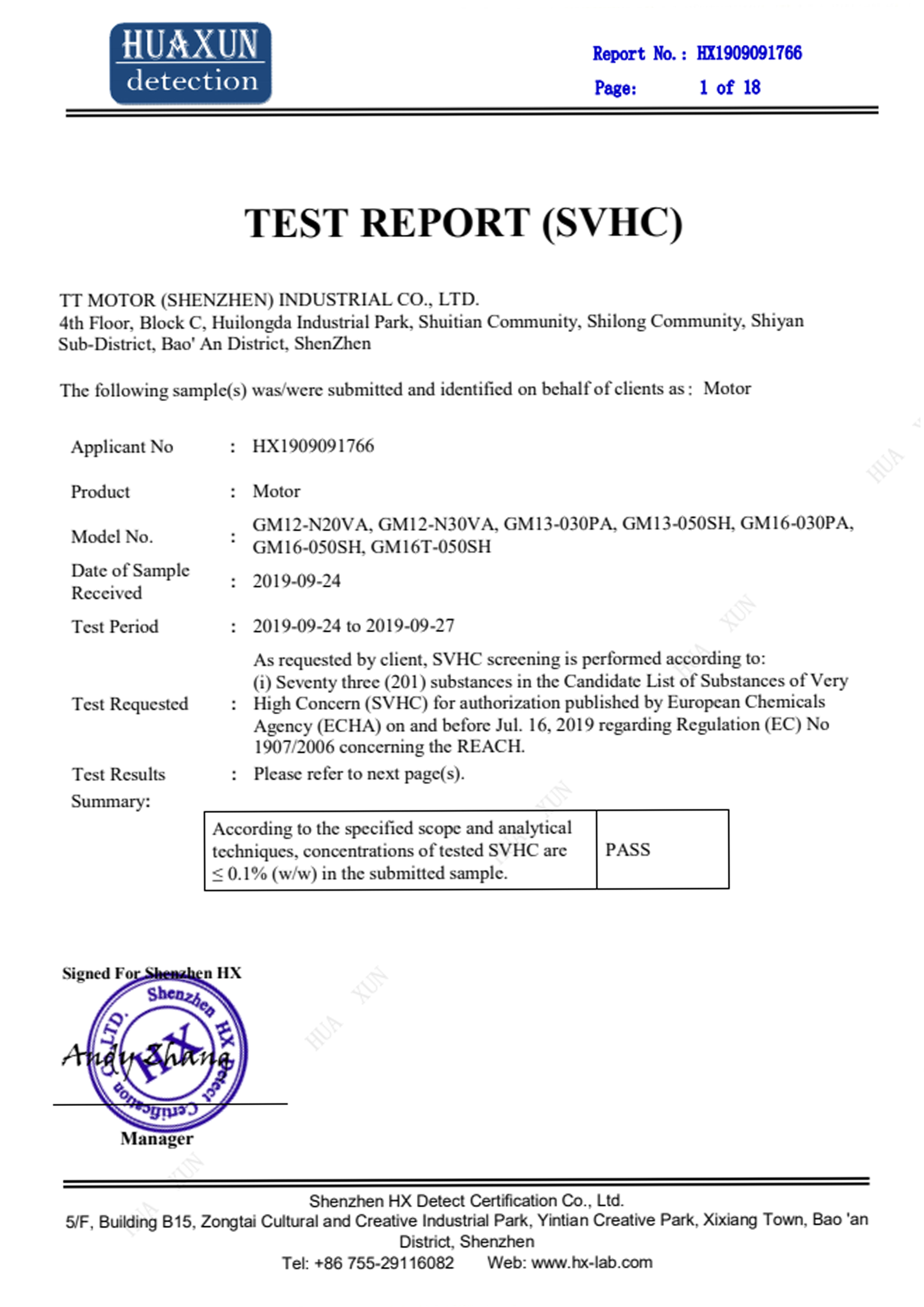

Certifications

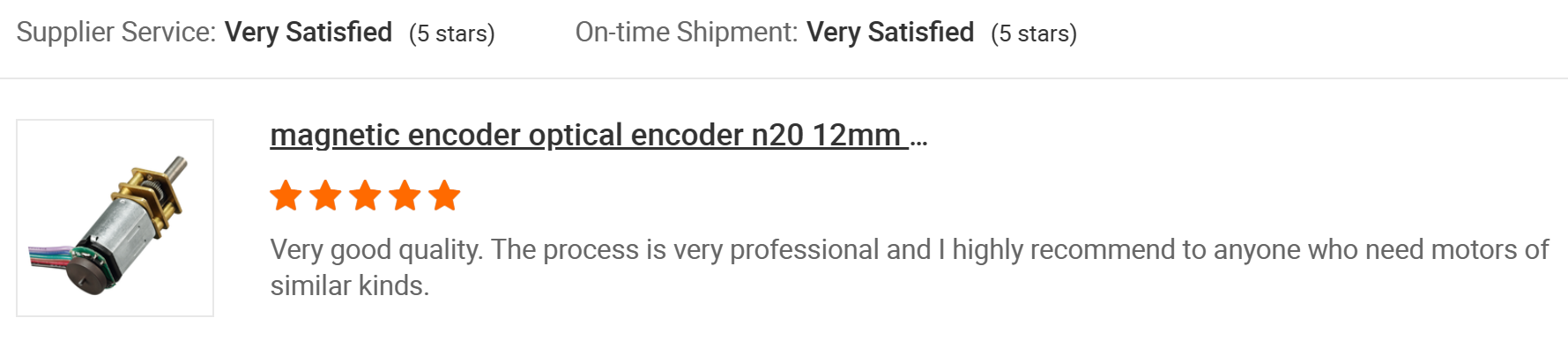

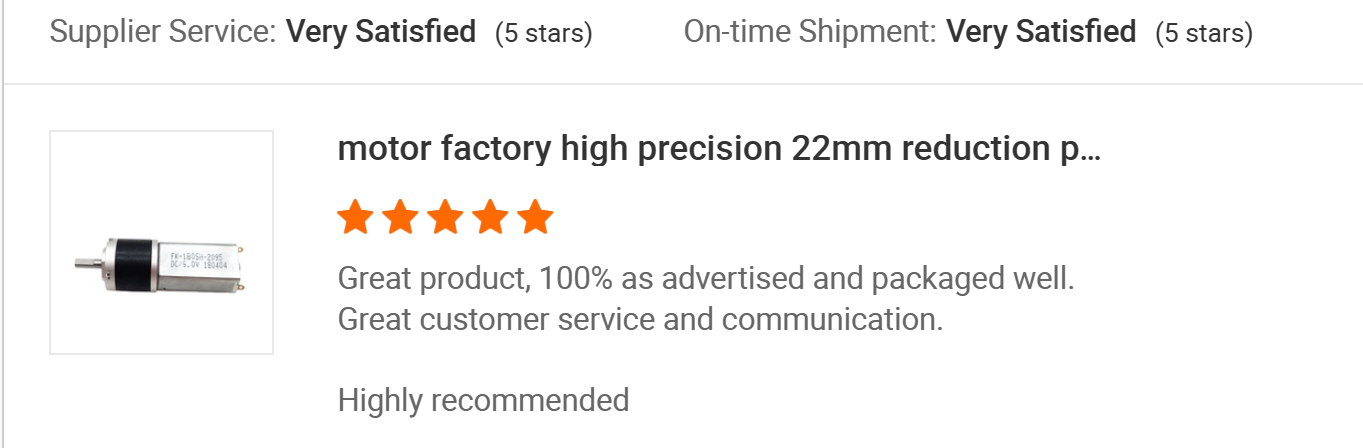

Reviews
Our Customers
Frequently Asked Questions
Q1: What are the main applications for the GM25-370CA DC gear motor?
A1: The GM25-370CA is commonly utilized in automatic door operators, energy-saving baths, electrical controlled valves, oxygen machines, optical equipment, cordless power tools, and automatic toys.
Q2: Does this DC gear motor support encoder integration?
A2: Yes, the GM25-370CA gear motor is designed to match an encoder, typically providing an 11ppr resolution for precise feedback.
Q3: What voltage configurations are available for this model series?
A3: The motor series offers options in both 6VDC (e.g., TRK-370CA-22170) and 12VDC (e.g., TRK-370CA-15360 / TRK-370CA-12560) configurations.
Q4: What is the maximum torque capacity of the GM25-370CA gearbox?
A4: The 25mm gearbox provides up to 0.5Nm of continuous torque, with a maximum momentary tolerance torque reaching up to 10 kg.cm at higher reduction ratios.
Q5: What are the standard reduction ratios available?
A5: The reduction ratios range widely to suit different applications, including 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, and 499.
Q6: What are the packaging and bulk shipping dimensions?
A6: Standard bulk packaging contains 840 pcs per carton. The standard carton size is 41.5 * 34.5 * 18.5 cm, with a gross weight of approximately 10.5 kg.
