TT Motor China Supplier 5v Geared Dc Motor With Encoder Mini Stepper Motor
Product Description

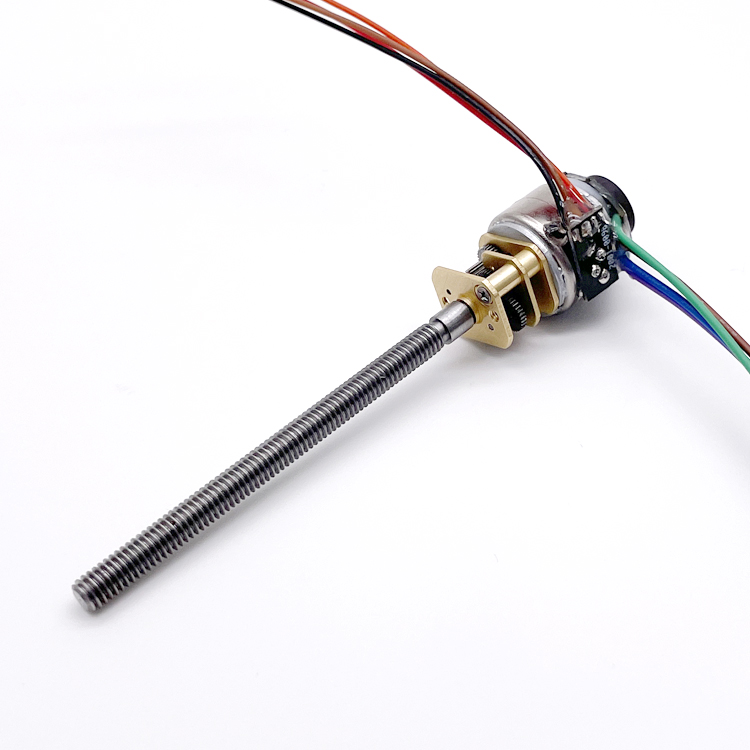

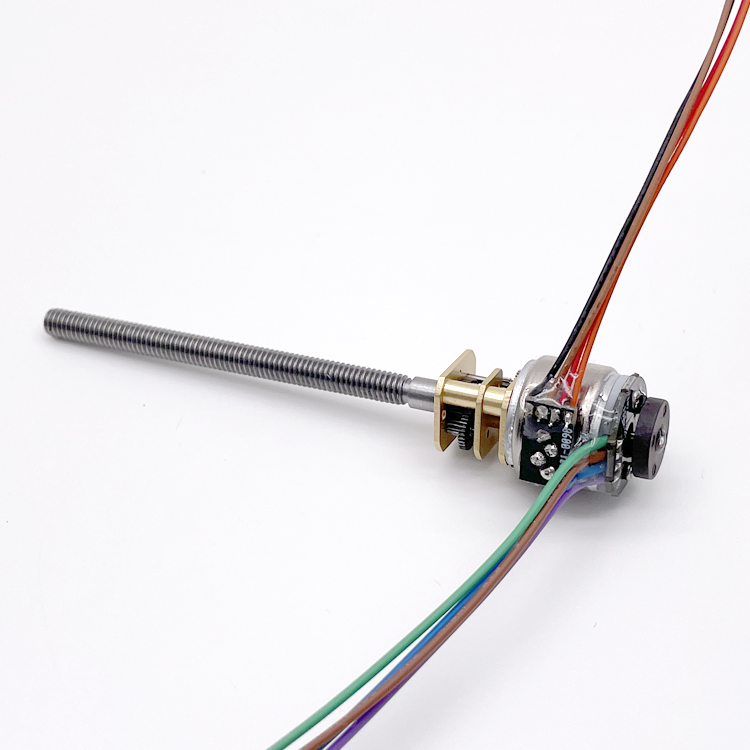

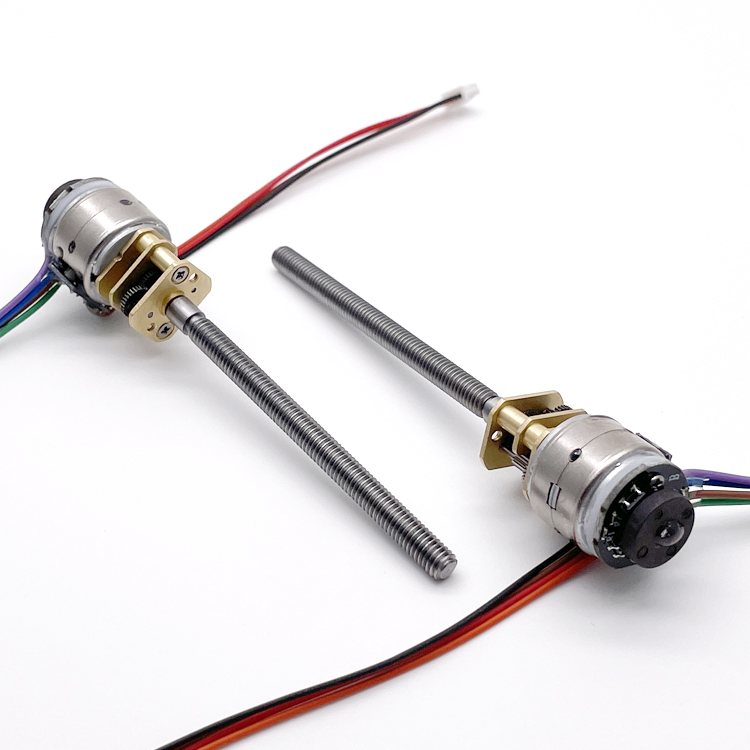

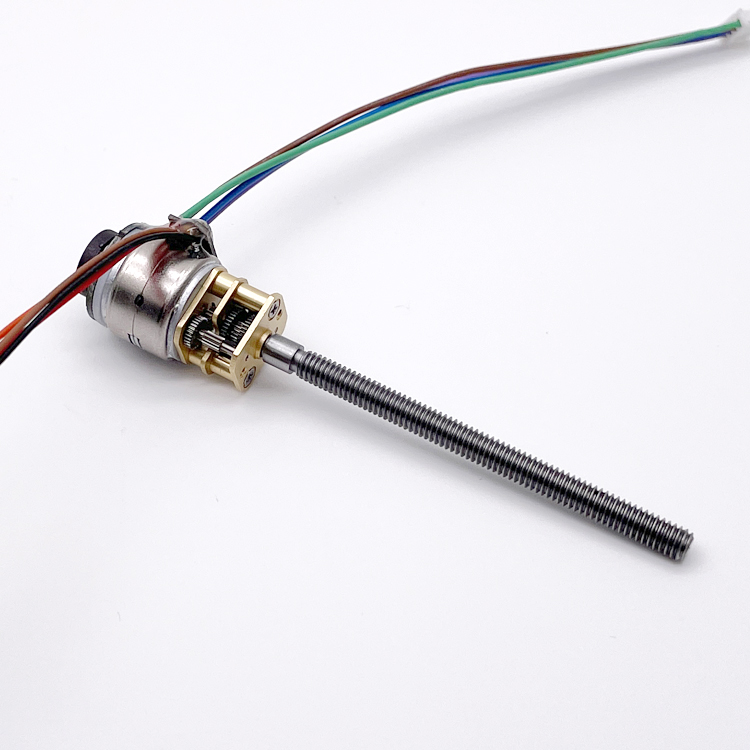

5V Geared DC Motor with Encoder Mini Stepper Motor
Main Features
- 12*10mm gearbox plus 15mm stepping motor
- Small size DC gear motor with low speed and big torque
- 12mm gear motor provide 0.05Nm torque and more reliable
- Suitable to small diameter, low noise and big torque application
- Reduction ratio: 3, 5, 10, 20, 30, 50, 60, 100, 150, 210, 250, 298, 380

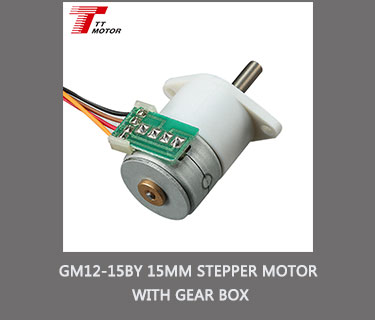

Specifications - Motor GM12-15BY
| Model | Rated Voltage | No. of Phase | Step Angle | Gear Ratio | Resistance | Holding Torque | Current | Pull-in Rate |
|---|---|---|---|---|---|---|---|---|
| GM12-15BY-30 | 5VDC | 2 | 18° | 1/30 | 10Ω | 500g.cm | 500mA | 800pps |
| GM12-15BY-50 | 5VDC | 2 | 18° | 1/50 | 10Ω | 700g.cm | 500mA | 850pps |
| GM12-15BY-110 | 5VDC | 2 | 18° | 1/110 | 10Ω | 1050g.cm | 500mA | 850pps |
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Business Machines
Vending Machines, Printers, ATM, Copiers and Scanners
Camera and Optical
Video Cameras, Projectors
Lawn and Garden
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
Our Customers & Partners
Trusted by industry leaders including NIKE, FLEXTRONICS, STANLEY, etc.
Packing & Delivery
Standard export packing to ensure safety during transit.
Shipping Methods & Estimates
✈️
DHL: 3-5 working days
UPS/TNT: 5-7 working days
UPS/TNT: 5-7 working days
✈️
FedEx: 7-9 working days
EMS: 12-15 working days
EMS: 12-15 working days
🚢
China Post / Sea: Depends on final destination country.
Customer Feedback
"Excellent quality, better price, good service, and on time delivery."
Frequently Asked Questions (FAQ)
How to place an order?
Send us an inquiry → receive our official quotation → negotiate order details → confirm the sample → sign the contract/pay deposit → mass production → cargo preparation → balance payment/delivery → long term cooperation.
Can I place a sample order?
Yes, samples are available. Please contact us for details. Sample fees charged initially will be refunded to you when you place a formal production order.
Which shipping options are available?
DHL, UPS, FedEx, TNT, EMS, China Post, and Sea Freight are all available. If you require other shipping arrangements, please contact us directly.
What is the production and shipping time?
Production/delivery time depends on the quantity of your order. Typically, the manufacturing cycle takes about 15-25 working days.
What should I do if my package has missing products?
Please contact our support team immediately. We will confirm your order details and verify the package contents. We apologize for any inconvenience caused.
How do I confirm the payment?
We accept payments by T/T and PayPal. Other payment options may also be accepted; please contact us before processing payment through alternative methods. We offer a 30-50% deposit option, with the remaining balance due prior to shipping.
