TT Custom Manufacturer 10mm 15mm 20mm 35mm 3.3V 5V 6V 12V Stepper Motor Mini Stepping Motor Micro Stepper Motor Dc Electric
Product Description

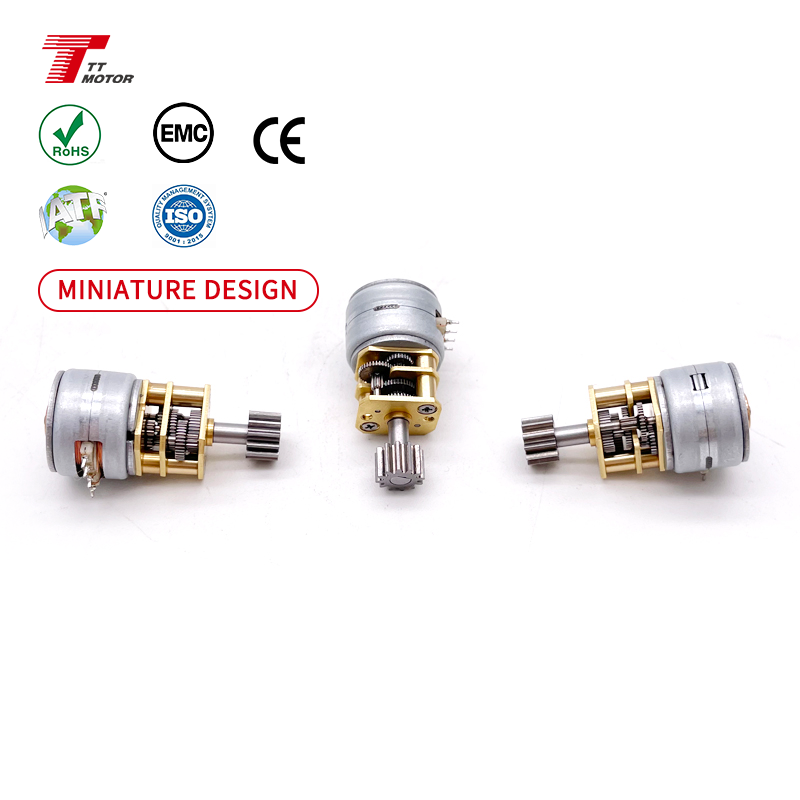

GM12-15BY 15mm DC Gear Motor 5V
High-performance micro stepper gear motor designed for precision and durability.
Main Features
- Perfect Combination: 12*10mm gearbox plus 15mm dc gear motor 5v
- Optimized Design: Small size dc gear motor with low speed and big torque
- Reliable Performance: 12mm gear motor provides 0.05Nm torque and enhanced reliability
- Versatile Application: Suitable for small diameter, low noise, and big torque applications
- Wide Reduction Ratios: 3, 5, 10, 20, 30, 50, 60, 100, 150, 210, 250, 298, 380

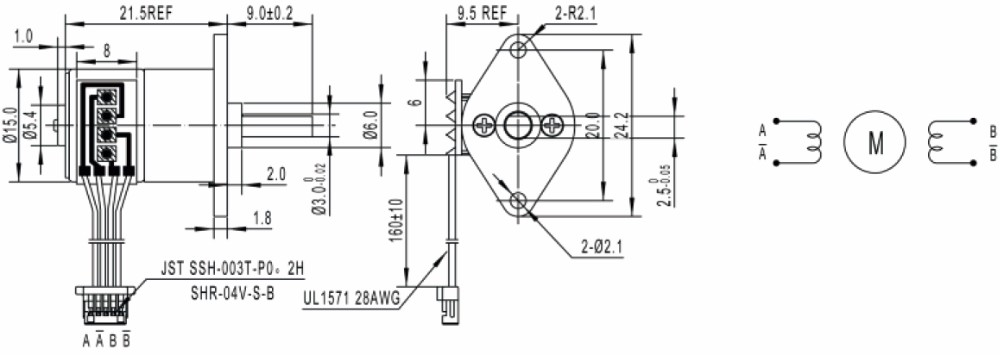

Specifications & Dimensions
| Motor Model | Gear Ratio | Rated Voltage | No. of Phase | Step Angle | Resistance | Holding Torque | Current | Pull in Rate |
|---|---|---|---|---|---|---|---|---|
| GM12-15BY-30 | 1/30 | 5VDC | 2 | 18° | 10Ω | 500g.cm | 500mA | 800pps |
| GM12-15BY-50 | 1/50 | 5VDC | 2 | 18° | 10Ω | 700g.cm | 500mA | 850pps |
| GM12-15BY-110 | 1/110 | 5VDC | 2 | 18° | 10Ω | 1050g.cm | 500mA | 850pps |
Manufacturing & Technical Capability

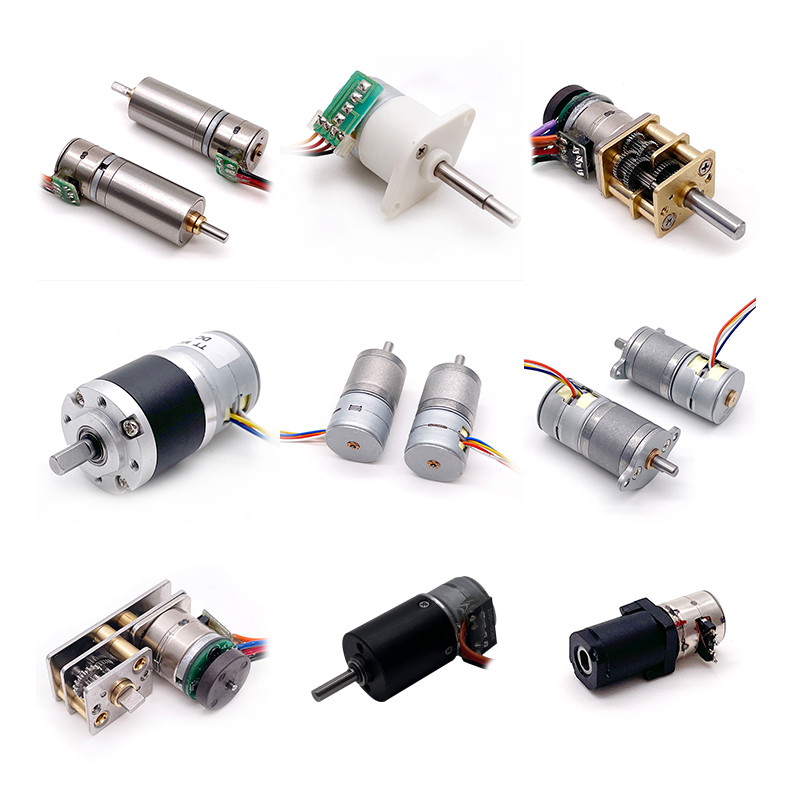

We have been specializing in DC Gear Motors, Brushless DC Motors, Stepper Motors, and Coreless Motors since 2006. Our motors are designed to be quiet, high torque, and durable with numerous size options. They are widely used in robotics, electric vehicles, pumps, medical equipment, home and industrial appliances, and are exported worldwide.

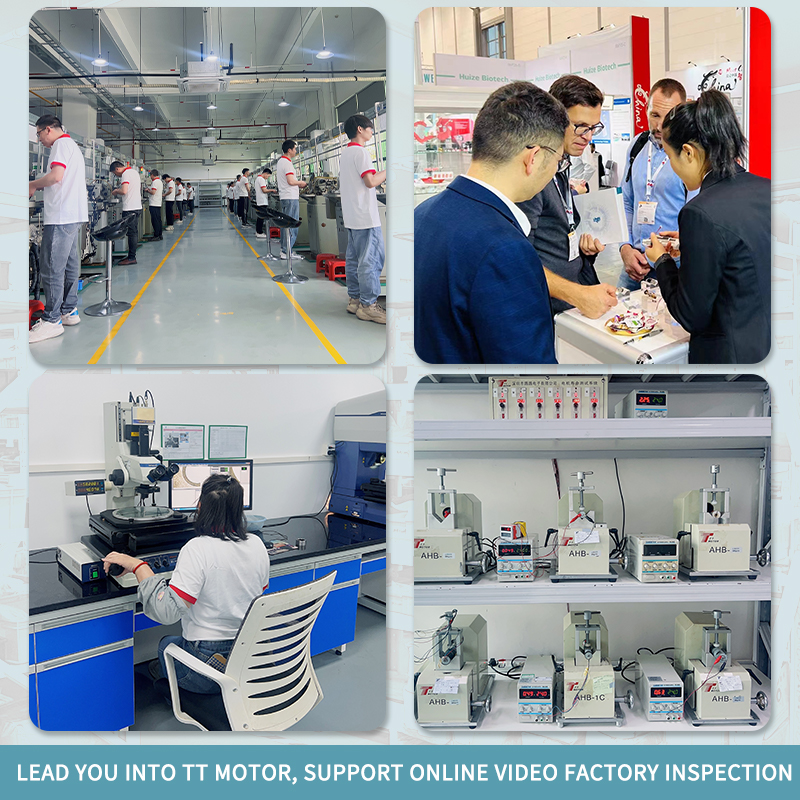

Our operations strictly comply with ISO9001:2015 and IATF16949 standards. Utilizing advanced equipment—including 100 sets of precision hobbing machines, automatic winding machines, and high-speed lathes—we guarantee the highest consistency and performance for every micro-motor produced.
Frequently Asked Questions
Q:
What is the core advantage of the GM12-15BY stepper gear motor?
It features a compact 12*10mm gearbox integrated with a 15mm DC motor, offering a space-saving profile, ultra-low noise levels, and high-torque delivery up to 0.05Nm.
Q:
What gear reduction ratios are available for this motor?
We offer a wide variety of reduction ratios to fit different needs: 3, 5, 10, 20, 30, 50, 60, 100, 150, 210, 250, 298, and 380.
Q:
What are the typical applications for this micro gear motor?
Due to its compact diameter, low noise, and stable output torque, it is widely utilized in robotics, precision medical equipment, pumps, electric vehicles, and automated home/industrial appliances.
Q:
What is the difference in holding torque between the model variations?
The holding torque scale corresponds to the gear ratio: GM12-15BY-30 provides 500g.cm, GM12-15BY-50 offers 700g.cm, and GM12-15BY-110 achieves up to 1050g.cm.
Q:
How is the quality of these micro stepper gear motors guaranteed?
All production lines strictly adhere to ISO9001:2015 and IATF16949 quality systems. Our workshops are equipped with advanced automated lathes, winding systems, and precision gear hobbing machines to maintain stable, reliable quality.
