GMP24-TEC2430 24mm Geared Motor Electric 12v Brushless Motor
Product Description

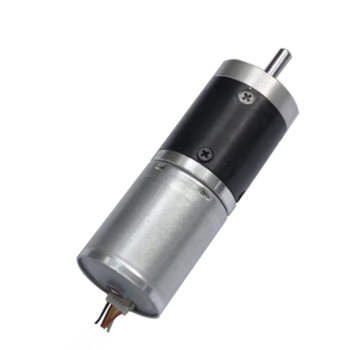

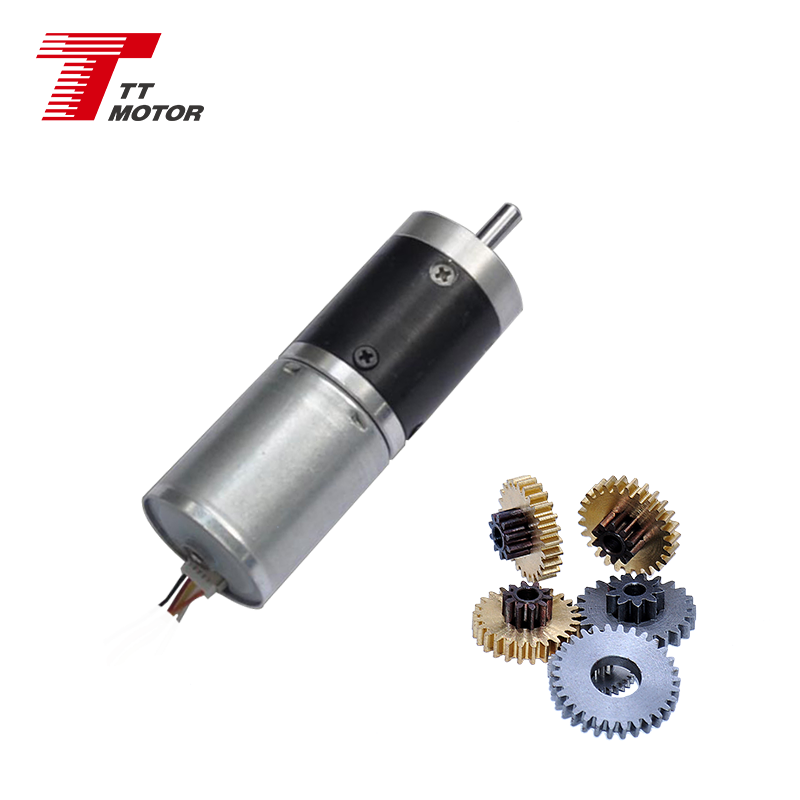

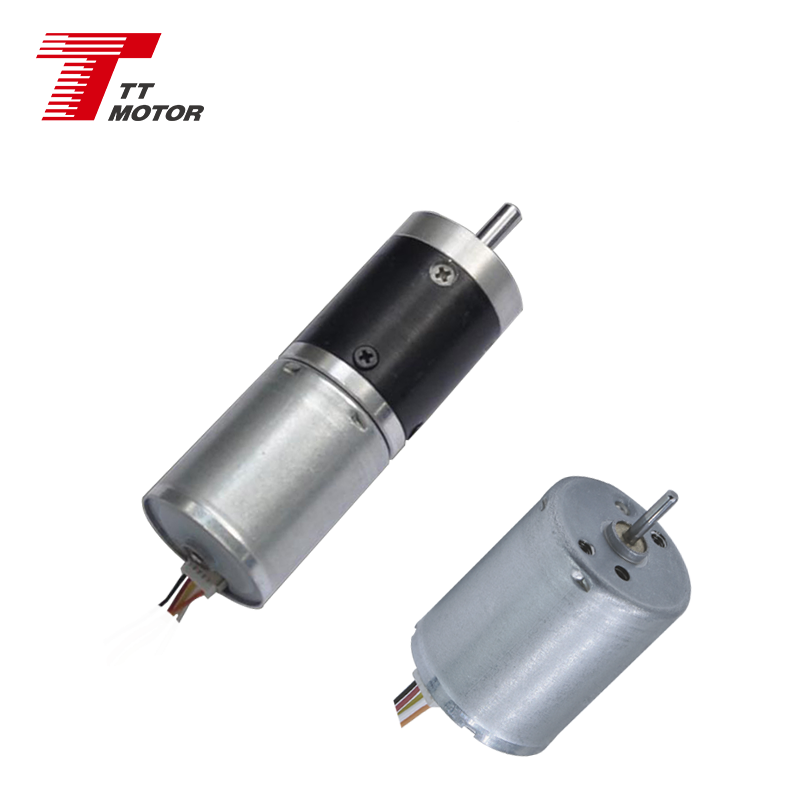

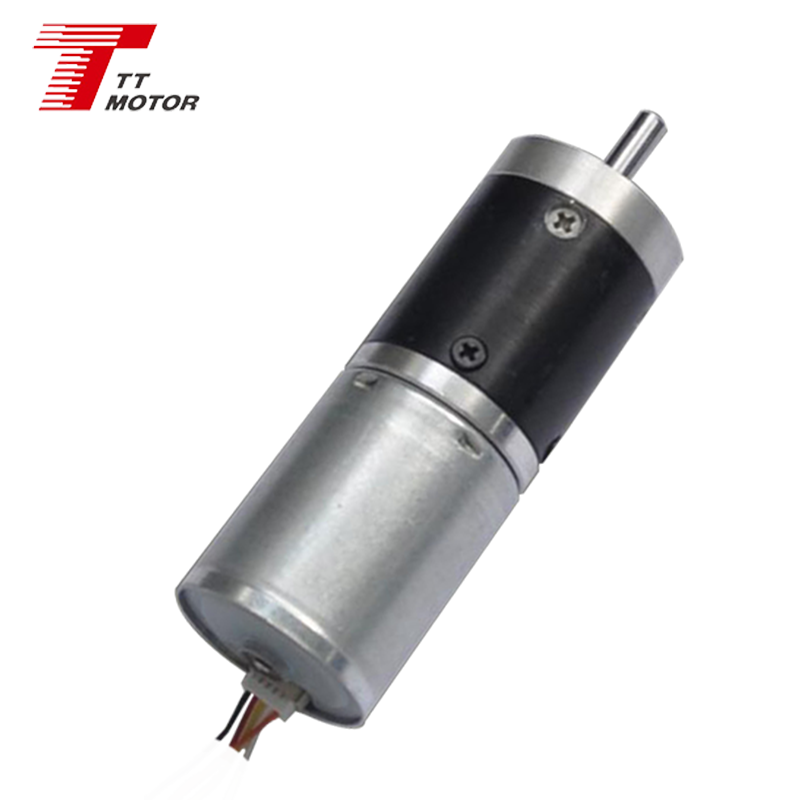

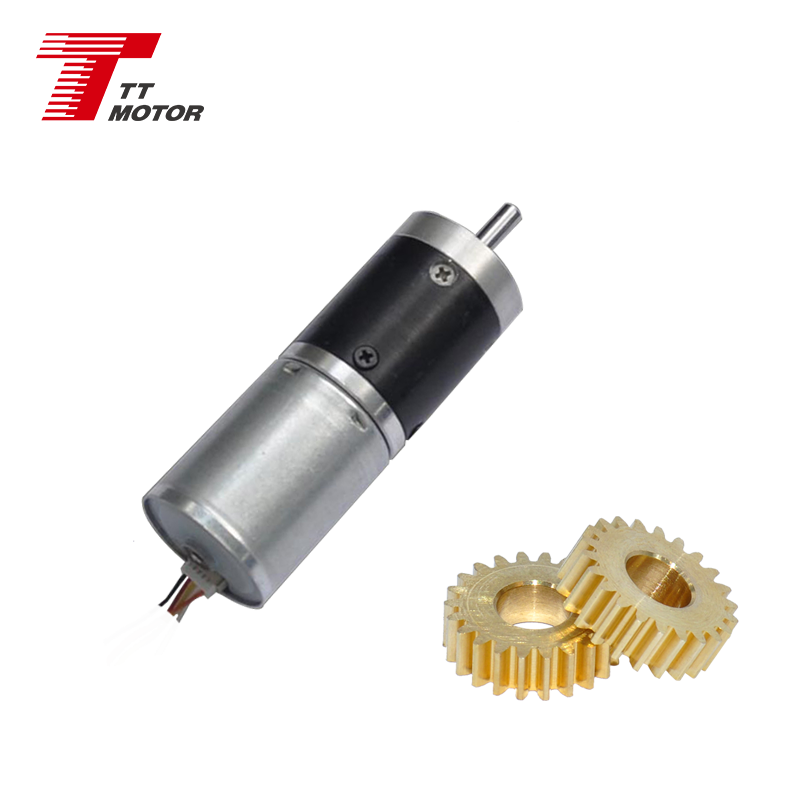

GMP24-TEC2430 24mm Geared Motor
High-performance 12V Brushless DC Motor with Planetary Gearbox
Product Description
This high-quality 24mm planetary gearbox integrated with a 24mm brushless motor provides reliable, low-speed, and high-torque output in a compact design.
- 24mm planetary gearbox paired with a 24mm brushless motor
- Compact DC gear motor delivering big torque at low speeds
- Provides up to 0.5Nm torque for enhanced reliability
- Perfect for small-diameter, low-noise, and high-torque applications
- Available Reduction Ratios: 4, 14, 19, 27, 51, 71, 100, 139, 189, 264, 369, 516, 720
Motor Specifications
| Motor Model No. | Rated Voltage | No-load Speed | No-load Current | Rated Speed | Rated Torque | Rated Current | Output Power | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|---|---|
| VDC | r/min | mA | r/min | g.cm | mA | W | g.cm | A | |
| TEC2430-1255 | 12 | 5500 | 90 | 4500 | 50 | 330 | 2.3 | 270 | 1.4 |
| TEC2430-2455 | 24 | 5500 | 50 | 4500 | 50 | 180 | 2.3 | 270 | 0.75 |
Gearbox Performance Data
| Reduction Ratio | 19 | 27 | 51 | 71 | 100 | 189 | 264 | 369 | 516 |
|---|---|---|---|---|---|---|---|---|---|
| Length (mm) | 58.8 | 58.8 | 63.8 | 63.8 | 63.8 | 68.8 | 68.8 | 68.8 | 68.8 |
| No-load Speed (rpm) | 280 | 195 | 105 | 75 | 55 | 29 | 21 | 15 | 11 |
| Rated Speed (rpm) | 250 | 180 | 95 | 68 | 48 | 25 | 18 | 13 | 9 |
| Rated Torque (kg.cm) | 0.6 | 1.0 | 1.4 | 2.0 | 2.8 | 5.0 | 5.0 | 5.0 | 5.0 |

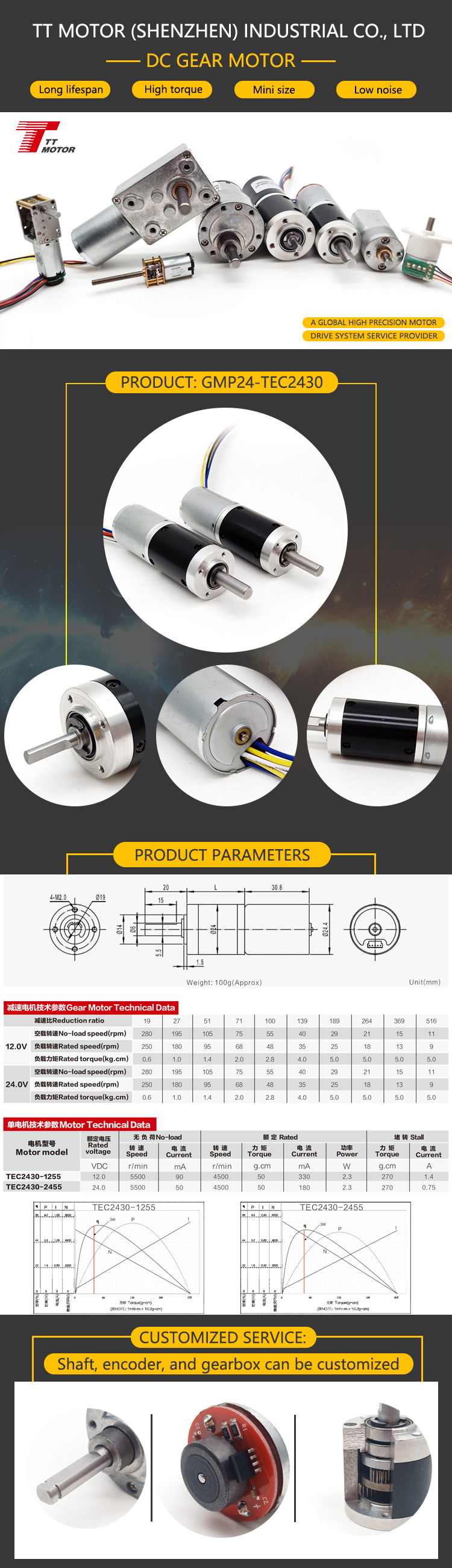

Product Showcase
Product Applications
Ideally suited for automatic door operators, automatic energy-saving baths, electrically controlled valves, robotics, grass cutters, electric curtains, cameras, medical equipment, oxygen concentrators, and more.
Other Industry Applications
| Category | Applications | |||
|---|---|---|---|---|
| Business Machines | Vending Machines | Printers | ATM Systems | Copiers and Scanners |
| Camera & Optical | Video Systems | Cameras | Projectors | - |
| Lawn & Garden | Lawn Mowers | Snow Blowers | Trimmers | Leaf Blowers |
Certifications
Compliant with ISO9001, SGS, and National High-Tech Enterprise standards, ensuring strict quality control and safety benchmarks.
Manufacturing Excellence
Specializing in micro motors, gear motors, and high-precision components since 2000. Our products are engineered for longevity and high performance, supporting application needs worldwide across entertainment, automotive, residential, and industrial sectors. 98% of our output is exported to global markets, driven by our commitment to exceptional reliability and build quality.
Key Customers: Globally recognized enterprises trust our drive solutions for their consumer and industrial products.
Packing & Delivery
Standard robust packaging ensures all orders arrive safely without damage.
Estimated Shipping Times
DHL: 3-5 Working Days
UPS: 5-7 Working Days
TNT: 5-7 Working Days
FedEx: 7-9 Working Days
EMS: 12-15 Working Days
*Note: China Post and Sea Shipping times vary depending on the destination country.
Customer Feedback
"Excellent quality, competitive pricing, prompt communication, and on-time delivery."
Frequently Asked Questions
How to place an order?
Send us an inquiry → Receive our detailed quotation → Negotiate specific requirements → Confirm the sample → Sign contract/Pay deposit → Mass production → Cargo preparation → Balance payment/Delivery → Long-term cooperation.
What is the sample order policy?
Samples are available for evaluation. Please reach out to request details. Sample fees charged are fully refunded once a formal commercial order is placed.
Which shipping options are available?
We support DHL, UPS, FedEx, TNT, EMS, China Post, and Sea Freight. Alternative shipping routes can also be arranged upon custom request.
What is the typical production and delivery lead time?
Production lead times depend on your specific order volume. Generally, standard mass manufacturing takes between 15 to 25 working days.
What should I do if my package has missing products?
Please contact the support team immediately. We will cross-verify your order with the package checklist and dispatch details to resolve any issues.
How is payment confirmed?
We accept bank transfers (T/T) and PayPal. Other payment options can be negotiated before processing. A 30% to 50% deposit is standard, with the remaining balance due prior to shipment.
