24v High Speed Bldc Motor 36mm Brushless Dc Motor 12v
Product Description

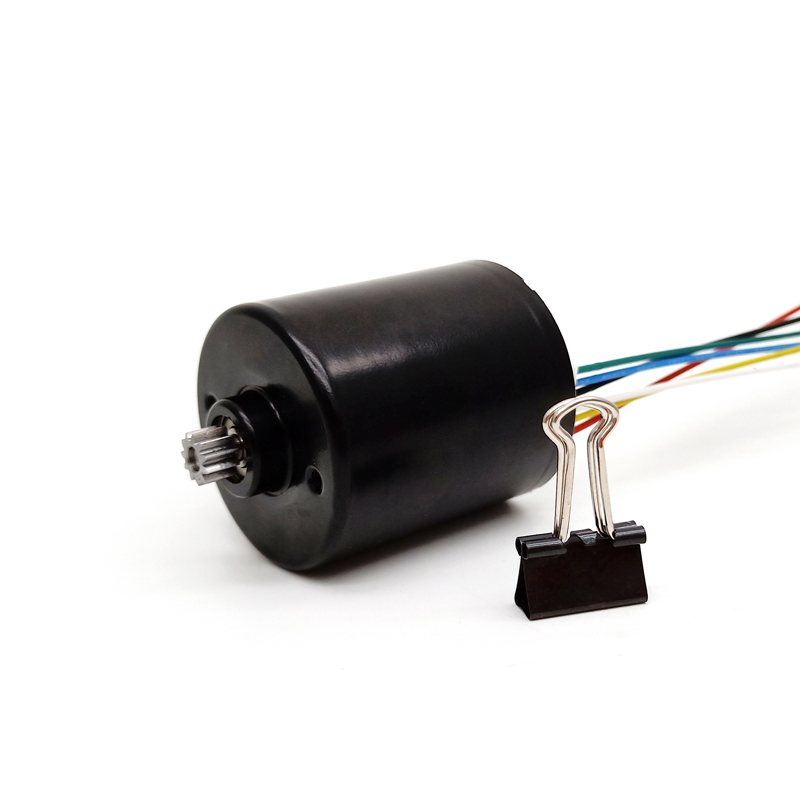

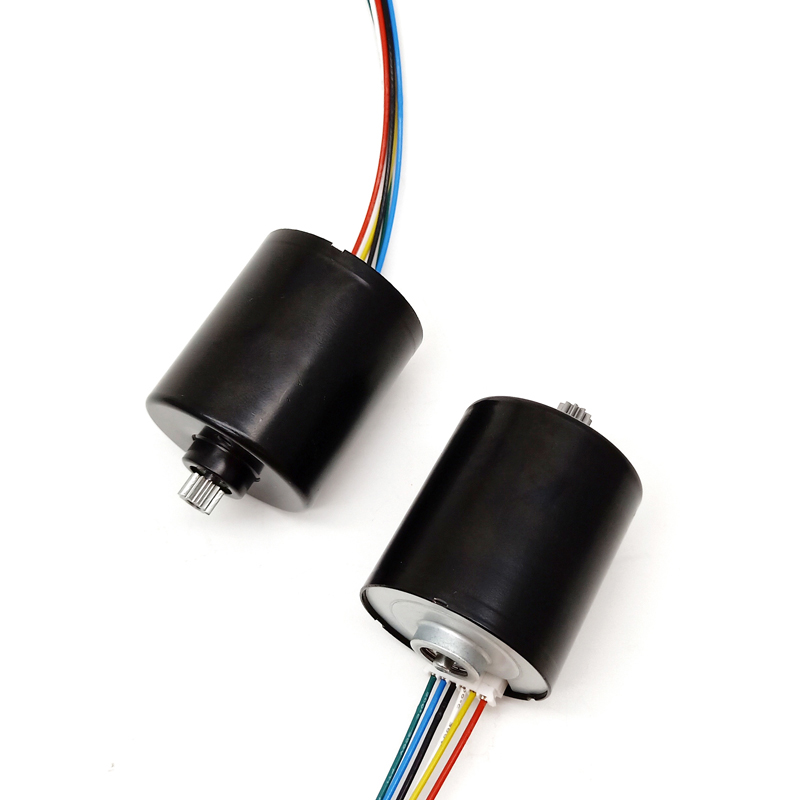

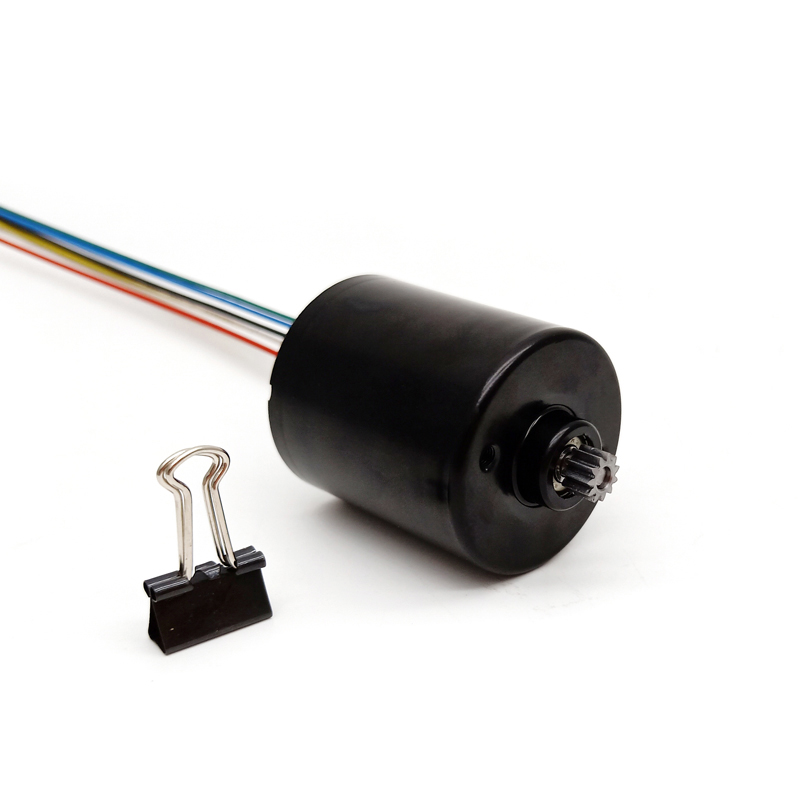

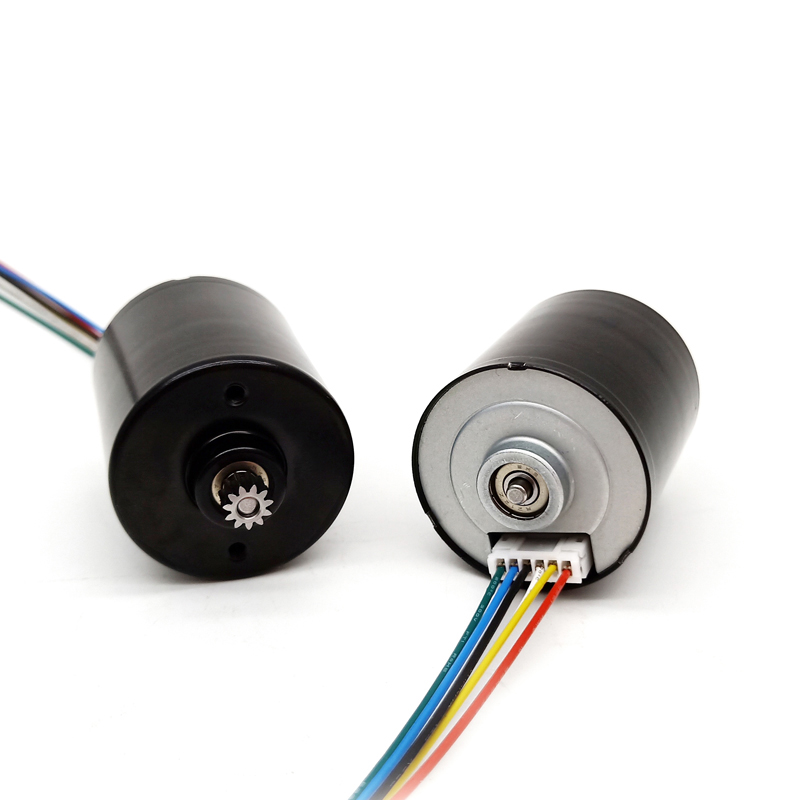

24v High Speed BLDC Motor 36mm Brushless DC Motor 12v
Product Application
- Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, optical equipment, Automat cordless power tool, lighting, etc.

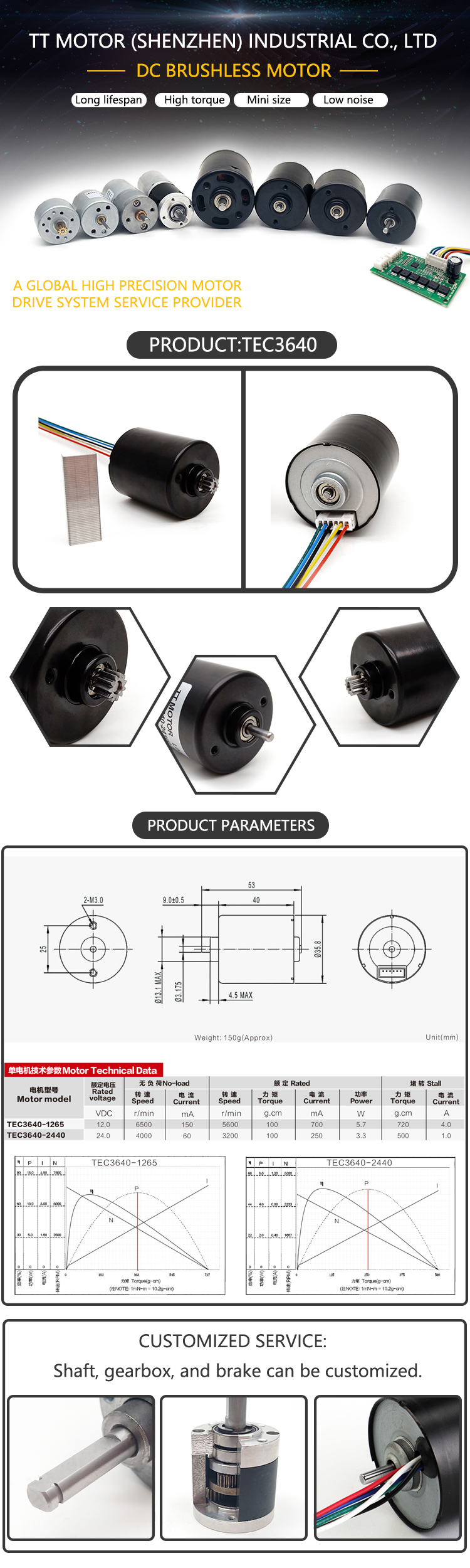

Technical Specifications (Model: TEC3640)
| Model | Voltage Details | Speed Details | Torque Details | Current Details | Power |
|---|---|---|---|---|---|
| TFC3640-1250 | Rated: 12VDC | Rated: 4000r/min No-load: 5000r/min |
Rated: 150g.cm Stall: 600g.cm |
No-load: 750mA Rated: 1000mA Stall: 2.5A |
6.2W |
| TFC3640-1233 | Rated: 12VDC | Rated: 2400r/min No-load: 3300r/min |
Rated: 250g.cm Stall: 880g.cm |
No-load: 250mA Rated: 1000mA Stall: 2.5A |
6.2W |
| TFC3640-2433 | Rated: 24VDC | Rated: 2400r/min No-load: 3300r/min |
Rated: 300g.cm Stall: 1650g.cm |
No-load: 130mA Rated: 500mA Stall: 3.0A |
7.4W |
Main Features

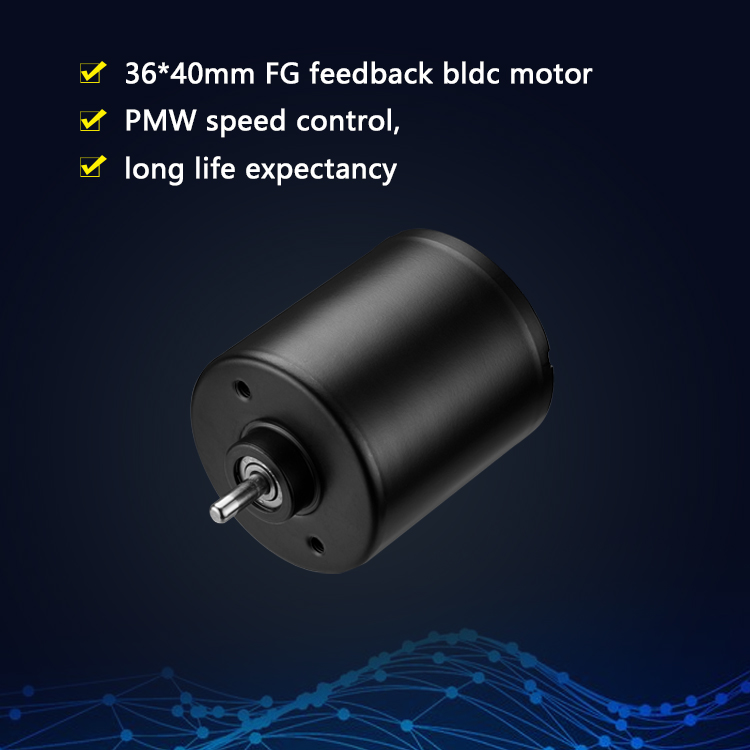

- 36mm brushless motor
- Low noise, long life. Built-in drive. Power on, then work
- Reverse rotation and Brake control
- PWM Speed control and FG signal feedback
- Can be available with planetary gearbox
Extended Applications & Industries
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Business Machines
Vending Machines, Printers, ATM, Copiers and Scanners
Camera and Optical
Video, Cameras, Projectors
Lawn and Garden
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
