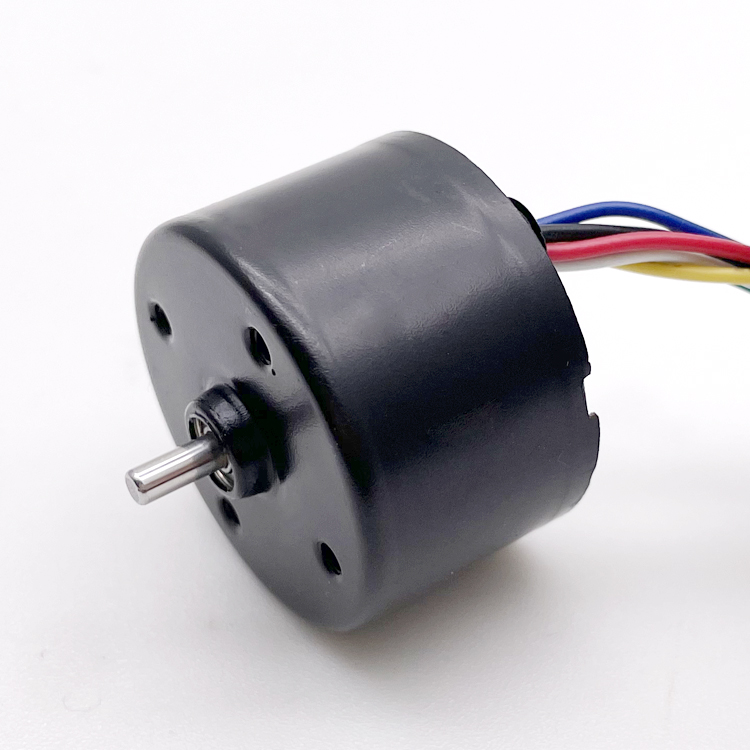

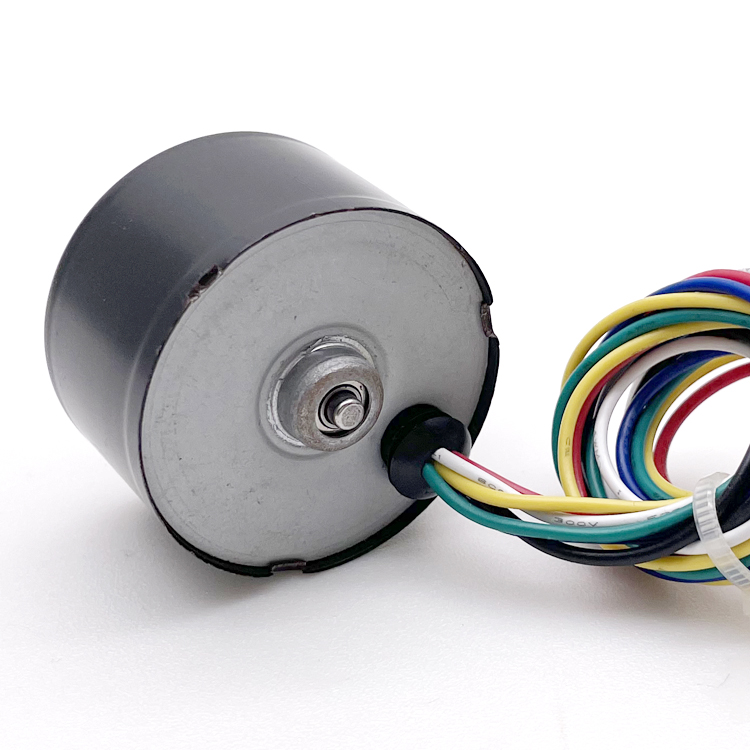

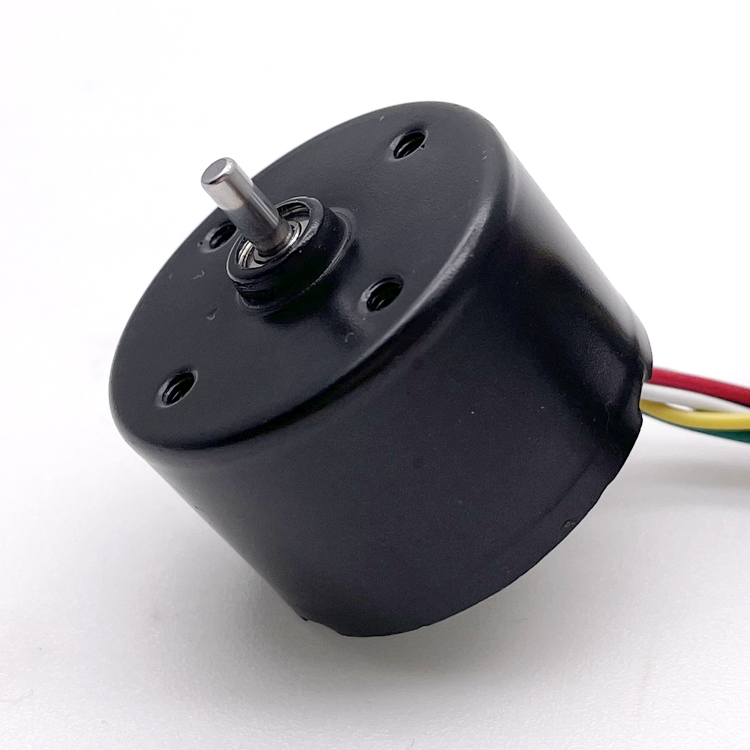

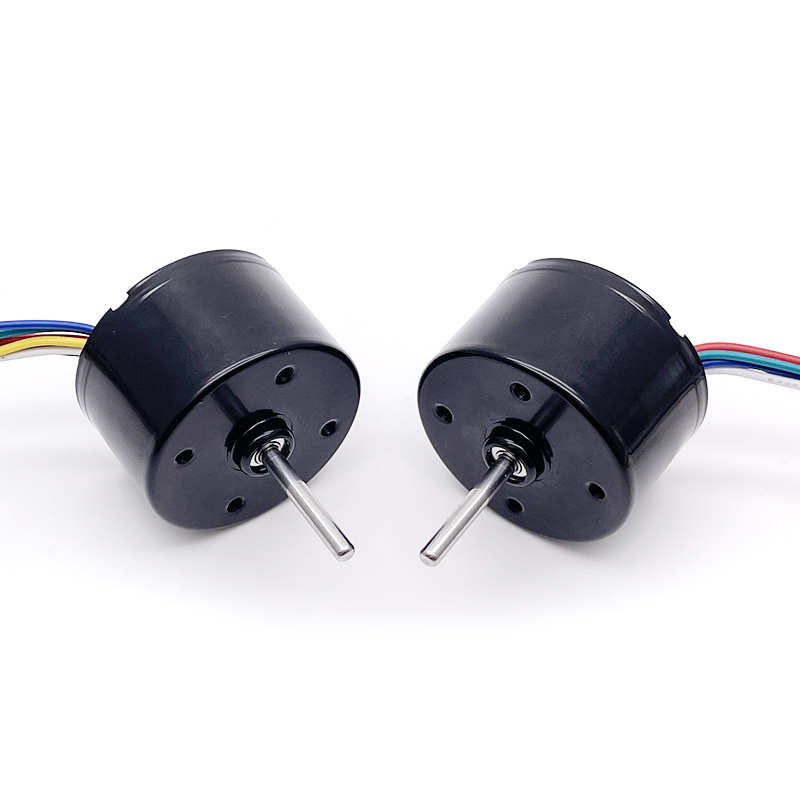

12V 24V BLDC Brushless DC Motor High Quality Efficient Electric Motor
Product Description
12V 24V BLDC Brushless DC Motor High Quality Efficient Electric Motor
Main Features
36mm brushless motor
Low noise, long life. Built-in drive. Power on, then work
Reverse rotation and Brake control
PWM Speed control and FG signal feedback
Can be available with planetary gearbox

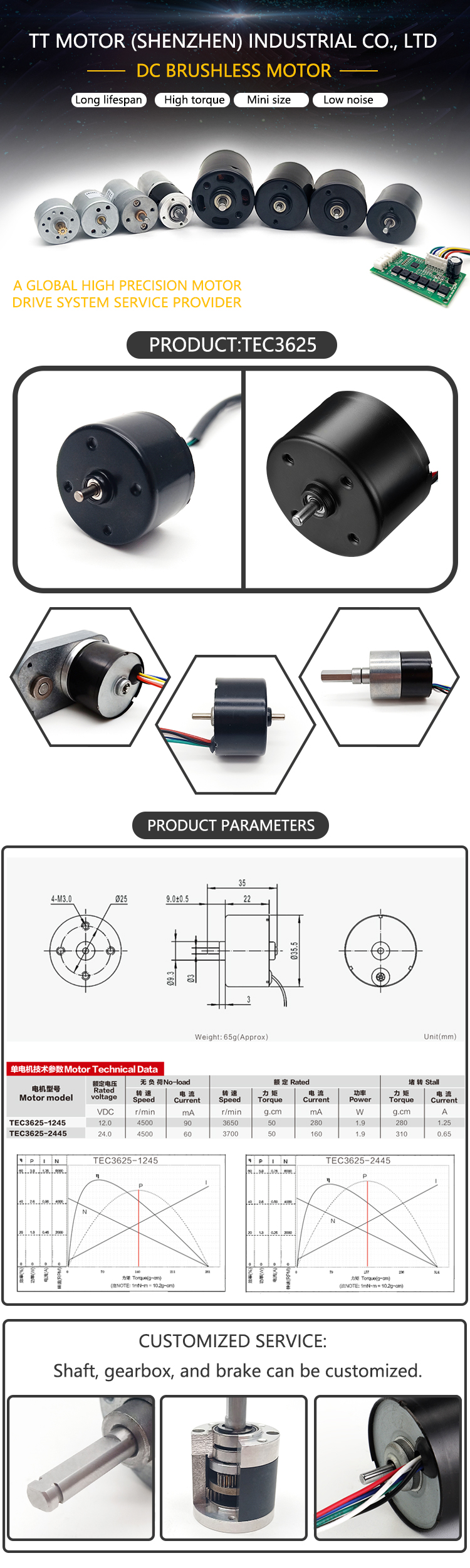

Model: motor TEC3625 Specifications
| Model | Electrical Characteristics | Speed Performance | Torque Performance | Current Performance | Output Power |
|---|---|---|---|---|---|
| TFC3625-0630 | Rated voltage: 6VDC | Rated speed: 2100r/min | Rated torque: 100g.cm | Rated current: 400mA | 2.2W |
| - | No-load speed: 3000r/min | Stall torque: 340g.cm | No-load current: 210mA | ||
| - | - | - | Stall current: 1.8A | ||
| TFC3625-1255 | Rated voltage: 12VDC | Rated speed: 4600r/min | Rated torque: 84g.cm | Rated current: 800mA | 4.6W |
| - | No-load speed: 5500r/min | Stall torque: 140g.cm | No-load current: 180mA | ||
| - | - | - | Stall current: 1.6A | ||
| TFC3625-2480 | Rated voltage: 24VDC | Rated speed: 5900r/min | Rated torque: 270g.cm | Rated current: 900mA | 16.5W |
| - | No-load speed: 8000r/min | Stall torque: 680g.cm | No-load current: 160mA | ||
| - | - | - | Stall current: 2.0A |
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Others Application
| Industry | Applications |
|---|---|
| Business Machines | Vending Machines, Printers, ATM, Copiers and Scanners |
| Camera and Optical | Video, Cameras, Projectors |
| Lawn and Garden | Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers |
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
Company Overview
Specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide. By leveraging our hard-won reputation for honesty, dependability and quality, the aim is to continue as a pioneer in sales overseas by seeking global partners. We look forward to being able to work together in the near future.
Our Customers
NIKE, FLEXTRONICS, STANLEY, etc.
Packing & Delivery
Standard packing
Shipping Time
DHL: 3-5 working days
UPS: 5-7 working days
TNT: 5-7 working days
FedEx: 7-9 working days
EMS: 12-15 working days
China Post: Depends on ship to which country; Sea: Depends on ship to which country
Our Customer Feedback
"Excellent quality, better price, good service, and on time delivery."
FAQ
How to order?
Send inquiry → receive quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.
How about Sample order?
Sample is available for you. Please inquire for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.
Which shipping way is available?
DHL, UPS, FedEx, TNT, EMS, China Post, and Sea shipping methods are available. Other shipping options can be coordinated upon request.
How long is the delivery and shipping?
Delivery time depends on the quantity ordered. Usually, the production and shipping preparation takes 15-25 working days.
What should I do if my package has missing products?
Please contact support immediately, and we will confirm your order details and verify the package contents to resolve the issue as quickly as possible.
How to confirm the payment?
We accept payments by T/T and PayPal. Other payment options can also be negotiated. A 30-50% deposit option is available, with the balance due prior to shipment.
